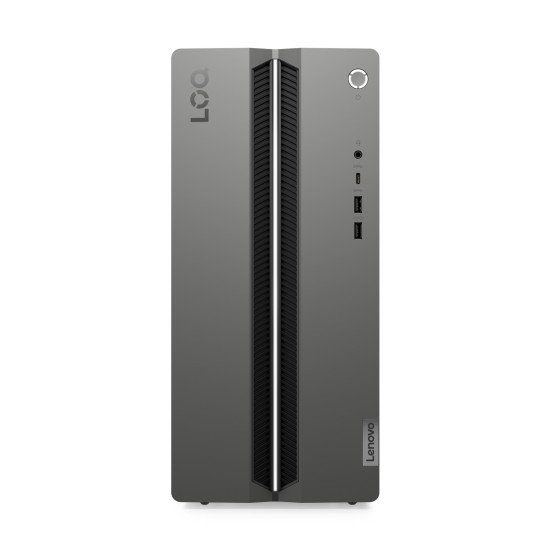

LOQ Tower 17IRR9

Technical Specifications

• Summary: Lenovo LOQ Tower 17IRR9. Processor family: Intel® Core™ i5, Processor model: i5-14400. Internal memory: 48 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 4800 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 730, Discrete graphics card model: NVIDIA GeForce RTX 5050. Power supply: 500 W. Chassis type: Tower. Product type: PC. Weight: 8 kg. Product colour: Black
• Vendor Homepage: https://www.lenovo.com/gb/en/p/desktops/loq-desktops/lenovo-loq-tower-17irr9/len102q0002?orgRef=https%253A%252F%252Fwww.google.com%252F&srsltid=AfmBOoql88jXEAKUcS7Zd97qz3AfGtWUqHg73dvx6Kxg3AfDQfjNScQl
• Name: PC LOQ-17IRR9 CI5-14400 48GB/1TB 90X000J4RM LENOVO
• Category Code: DT
• Model: Tower 17IRR9
• Desktop Computer Family name: LOQ
• Chassis type: Tower
• Colour name: Luna Grey (Front Bezel), Raven Black (Chassis)
• Volume: 17
• Product colour: Black
• Processor manufacturer: Intel
• Processor family: Intel Core i5
• Processor generation: Intel Core i5 (14th gen)
• Processor model: i5-14400
• Processor cores: 10
• Processor threads: 16
• Processor boost frequency: 4.7
• Performance cores: 6
• Efficient cores: 4
• Performance-core Max Turbo Frequency: 4.7
• Efficient-core Max Turbo Frequency: 3.5
• Performance-core base frequency: 2.5
• Efficient-core base frequency: 1.8
• Processor cache: 20
• Processor cache type: Smart Cache
• Maximum turbo power: 148
• Processor base power: 65
• Internal memory: 48
• Maximum internal memory: 32
• Internal memory type: DDR5-SDRAM
• Memory slots: 2x DIMM
• Memory clock speed: 4800
• Memory channels: Dual-channel
• Non-ECC: Yes
• Storage media: SSD
• Total storage capacity: 1000
• Number of storage drives installed: 1
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• M.2 SSD size: 2280 (22 x 80 mm)
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• On-board graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5050
• Discrete graphics card memory: 8
• Discrete graphics memory type: GDDR7
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel UHD Graphics
• On-board graphics card model: Intel UHD Graphics 730
• Graphics card DisplayPorts quantity: 3
• Graphics card HDMI ports quantity: 1
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
• VGA (D-Sub) ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Ethernet LAN (RJ-45) ports: 1
• Headphone outputs: 1
• Combo headphone/mic port: Yes
• Motherboard chipset: Intel B760
• Audio system: High Definition Audio
• Password protection: Yes
• Password protection type: HDD/Power on
• Product type: PC
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Power supply: 500
• Power supply input voltage: 100 - 240
• Power supply input frequency: 50/60
• Operating temperature (T-T): 10 - 35
• Storage temperature (T-T): -40 - 60
• Operating relative humidity (H-H): 20 - 80
• Storage relative humidity (H-H): 20 - 90
• Operating altitude: -15.2 - 3048
• Non-operating altitude: -15.2 - 10668
• Certification: ErP Lot 3 RoHS compliant
• Width: 170
• Depth: 279
• Height: 376
• Weight: 8000
• Package width: 270
• Package depth: 525
• Package height: 395
• Package weight: 11100
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.03869
• Unit Calculated Weight: 7
