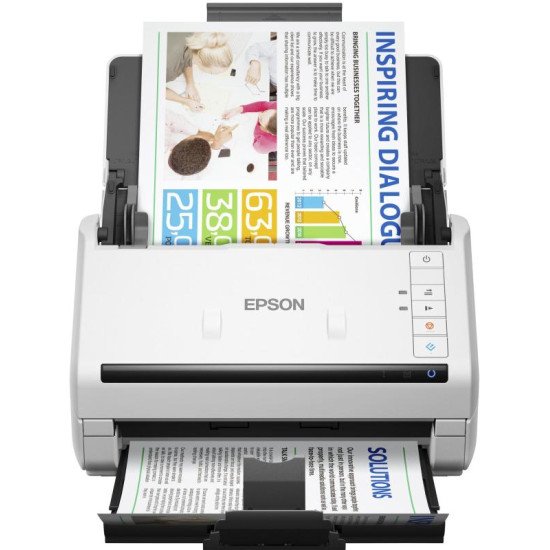

With powerful media handling and innovative smart features to ensure a high level of data integrity, the WorkForce DS-770II is geared towards highly-efficient and simple integration into an organisation’s workflow. With a 100-page ADF and the ability to scan at up to 45ppm/90ipm, it offers a wide range of media handling options that enable you to rapidly capture, index, store and share business documents.
Intelligent features improve efficiency, accuracy and data reliability With an industry-first slow mode1 for scanning crumpled or fragile documents, the ability to scan challenging media has never been easier. The Active Separation Roller System prevents tedious document double feeds ensuring every piece of paper gets scanned and the Double Feed Detection Skip (DFDS) function means you can scan difficult media like envelopes or documents with post-it notes. Auto Scan Mode enables the processing of a vast number of documents as manageable amounts, enabling them to be scanned as one file.
Highly versatile The optional flatbed scanner conversion kit allows effective document processing from stamps to passports and books. Single-pass double-sided scanning ensures rapid document processing, while it's possible to scan a versatile array of media such as paper as thin as 27gsm, or thick card at 413gsm. The A3 carrier sheet speeds up the process by automatically stitching larger documents back together digitally.
Flexible connectivity High-speed USB 3.0 with TWAIN, WIA and ISIS drivers for enhanced compatibility with Document Management Systems.
Image enhancement and document management software Epson Scan 2.0 software makes it easy to edit images with features such as de-skew and auto rotate, while Document Capture Pro is the easy to use solution for capturing and storing electronic documents at the touch of a button.
An industry first with Slow Mode: Scan crumpled, long or fragile documents without increasing file sizes
Active Separation Roller System: Prevents tedious double feeds ensuring every piece of paper gets scanned
Optional flatbed scanner conversion kit: Enables scanning of items from stamps to passports, books and more
Auto Scan Mode: Quickly process physical documents in manageable amounts
Optional Network Interface: Easy sharing between users with push scan and pre-defined job profiles
Summary: Epson DS-770 II. Maximum scan size: 215.9 x 6096 mm, Optical scanning resolution: 600 x 600 DPI, Input colour depth: 30 bit. Scanner type: Sheet-fed scanner, Product colour: White, Display: LCD. Daily duty cycle (max): 7000 pages, Light source: ReadyScan LED, Scan file formats: JPEG, PDF, TIFF. Standard input capacity: 100 sheets, Auto document feeder (ADF) input capacity: 100 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Plastic Card, Post Card(JPN), ISO A-series sizes (A0...A9): A4, A5, A6
Scanning media types supported: Plastic Card/Post Card(JPN)
Maximum ISO A-series paper size: A4
ISO A-series sizes (A0...A9): A4/A5/A6
ISO B-series sizes (B0...B9): B5/B6
Legal: Yes
Letter: Yes
Auto Document Feeder (ADF) media weight: 27 - 413
Maximum scan area (ADF): 215.9 x 6096
Minimum scan area (ADF): 50.8 x 50.8
USB port: Yes
USB version: 3.2 Gen 1 (3.1 Gen 1)
Power supply type: AC
Power consumption (off): 0.1
Width: 296
Depth: 169
Height: 176
Weight: 3700
Quantity per pack: 1
Package width: 250
Package depth: 365
Package height: 285
Package weight: 4580
Warranty card: Yes
Cables included: AC
Drivers included: Yes
Bundled software: Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Document Capture Pro Server (on free download), Epson Scan 2, Presto! BizCard 5.6
Compatible operating systems: Citrix XenApp 5.0, Citrix XenApp 6.0, Citrix XenApp 7.6 und höher, Linux, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X, Mac OS X 10.6.8, Windows 10, Windows 7, Windows 7, 64-Bit-Version, Windows 8, Windows 8 (32/64 Bit), Windows 8 RT, Windows 8.1
Linux operating systems supported: Yes
Mac operating systems supported: Yes
Server operating systems supported: Windows Server 2003 R2/Windows Server 2008/Windows Server 2008 R2/Windows Server 2008 x64/Windows Server 2012 R2/Windows Server 2012 x64
Windows operating systems supported: Windows 10/Windows 7/Windows 7 x64/Windows 8/Windows 8 x64/Windows 8.1/Windows 8.1 x64/Windows RT/Windows Vista/Windows Vista x64/Windows XP Professional x64
