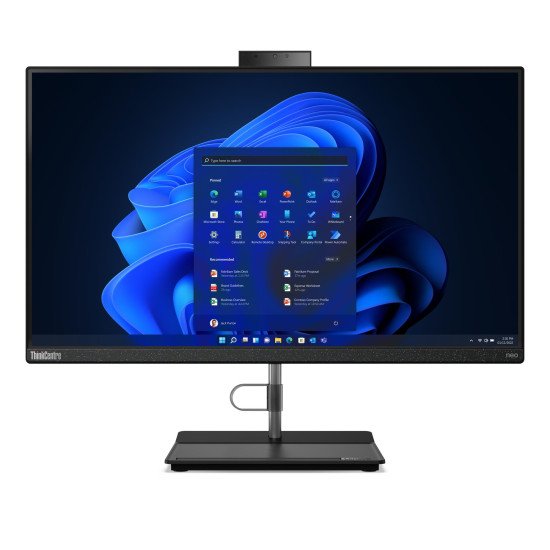

ThinkCentre neo 30a 24 Gen 4

Technical Specifications

• Summary: Lenovo ThinkCentre neo 30a. Product type: All-in-One PC. Display diagonal: 60.5 cm (23.8"), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Panel type: IPS. Processor family: Intel Core i5. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics. Built-in camera. Optical drive type: DVD±RW. Product colour: Black
• Vendor Homepage: https://www.lenovo.com/us/en/p/desktops/thinkcentre/thinkcentre-neo-series/thinkcentre-neo-30a-gen-4-24-inch-intel-aio/12k00005us?orgRef=https%253A%252F%252Fwww.google.com%252F
• Name: PC TC NEO 30A-24 I5-13420H 24"/16/512GB 12K00033RI LENOVO
• Category Code: MNB
• Desktop Computer Family name: ThinkCentre
• Display diagonal: 23.8
• Display resolution: 1920 x 1080
• HD type: Full HD
• Native aspect ratio: 16:9
• Display brightness: 250
• Panel type: IPS
• Anti-glare screen: Yes
• RGB colour space: NTSC
• Colour gamut: 72
• Tilt adjustment: Yes
• Tilt angle range: -5 - 25
• Processor manufacturer: Intel
• Processor family: Intel Core i5
• Processor generation: 13th gen Intel Core i5
• Processor model: i5-13420H
• Processor cores: 8
• Processor threads: 12
• Processor boost frequency: 4.6
• Performance cores: 4
• Efficient cores: 4
• Performance-core Max Turbo Frequency: 4.6
• Efficient-core Max Turbo Frequency: 3.4
• Processor cache: 12
• Processor cache type: Smart Cache
• Maximum turbo power: 115
• Processor base power: 45
• Internal memory: 16
• Internal memory type: DDR4-SDRAM
• Maximum internal memory: 16
• Memory slots: 2
• Memory slots type: SO-DIMM
• Memory clock speed: 3200
• Memory layout (slots x size): 1 x 16
• Memory form factor: DIMM/SO-DIMM
• Total storage capacity: 512
• Storage media: SSD
• Number of storage drives installed: 1
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Optical drive type: DVD±RW
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel UHD Graphics
• On-board graphics card model: Intel UHD Graphics
• Built-in speaker(s): Yes
• Number of speakers: 2
• RMS rated power: 6
• Speakers manufacturer: Harman Kardon
• Audio chip: Realtek ALC256
• Audio system: HD
• Built-in camera: Yes
• Camera HD type: HD
• Camera resolution: 1280 x 720
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 6 AX201
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Bluetooth: Yes
• Bluetooth version: 5.2
• Ethernet LAN (RJ-45) ports: 1
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• HDMI ports quantity: 1
• Combo headphone/mic port: Yes
• Colour name: Raven black
• Product colour: Black
• Product type: All-in-One PC
• Motherboard chipset: Intel SoC
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• BIOS password: Yes
• AC adapter power: 90
• Width (with stand): 541
• Depth (with stand): 207.5
• Height (with stand): 433.8
• Weight (with stand): 6700
• Package width: 659
• Package depth: 206
• Package height: 554
• Package weight: 10740
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): -20 - 60
• Operating relative humidity (H-H): 20 - 80
• Storage relative humidity (H-H): 10 - 90
• Operating altitude: 0 - 3048
• Non-operating altitude: 0 - 12192
• Certification: TÜV Rheinland Flicker Free TÜV Rheinland Low Blue Light TÜV Rheinland Low Noise
• Mouse connectivity: Wired
• Mouse included: Yes
• Keyboard connectivity: Wired
• Keyboard included: Yes
• Keyboard language: English
• Product model code: neo 30a 24 Gen 4
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.07508
• Unit Calculated Weight: 12
