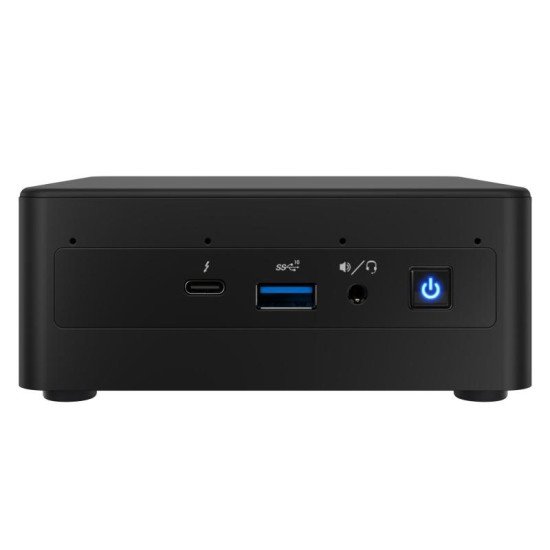

Summary: Intel NUC 11 Performance kit. Chassis type: UCFF, Product type: Mini PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD. Ethernet LAN (RJ-45) ports: 1
Vendor Homepage: https://www.intel.com/
Name: PC KIT NUC 11 PRO CI3-1115G4/NUC11PAHI3 ASUS
Category Code: COK
Model: NUC 11 Pro Kit
Chassis type: UCFF
Product colour: Black
LED indicators: Yes
Product type: Mini PC barebone
Status: Launched
ARK ID: 228584
Processor manufacturer: Intel
Processor family: Intel Core i3
Processor generation: 11th gen Intel Core i3
Processor model: i3-1115G4
Processor cores: 2
Processor threads: 4
Processor boost frequency: 4.1
Built-in processor: Yes
Processor lithography: 10
Processor cache: 6
Thermal Design Power (TDP): 40
Memory bandwidth supported by processor (max): 51.2
CPU configuration (max): 1
Memory slots type: SO-DIMM
Number of DIMM slots: 2
Number of memory slots: 2
Maximum internal memory: 64
Memory bandwidth (max): 51.2
Memory channels: Dual-channel
Removable memory card slot: SDXC with UHS-II support
Supported memory clock speeds: 3200
Supported memory types: DDR4-SDRAM
Supported storage drive types: HDD & SSD
Storage drive sizes supported: 2.5/M.2
SSD form factor: M.2
Number of storage drives supported: 2
Graphics card family: Intel
On-board graphics card model: Intel UHD Graphics
Number of displays supported: 4
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN controller model: Intel Wi-Fi 6 AX201
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth: Yes
LAN controller: Intel I225-V
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
HDMI ports quantity: 1
HDMI version: 2.0b
DisplayPort version: 1.4
Mini DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
M.2 card slot (storage): 2280
Number of SATA III connectors: 2
Thunderbolt 3 ports quantity: 2
USB ports quantity: 7
DC-in jack: Yes
PCI Express slots version: 4.0
Motherboard form factor: UCFF
Number of processors supported: 1
Audio output channels: 7.1
Consumer infrared Rx sensor: Yes
Commodity Classification Automated Tracking System (CCATS): G157815L2
Export Control Classification Number (ECCN): 5A992C
Idle States: Yes
Intel Rapid Storage Technology: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel AES New Instructions (Intel AES-NI): Yes
Intel High Definition Audio (Intel HD Audio): Yes
Intel Platform Trust Technology (Intel PTT): Yes
Windows operating systems supported: Windows 10 x64/Windows 11 x64
Compatible operating systems: Windows 10, 64-bit*
Harmonized System (HS) code: 84713000
Power supply type: External AC adapter
AC adapter output voltage: 19
Operating temperature (T-T): 0 - 35
Storage temperature (T-T): -20 - 60
Width: 117
Depth: 112
Height: 51
Power cord included: Yes
Launch date: Q222
Additional headers: CEC, USB3.1, USB2.0, FRONT_PANEL, RGB
DC input voltage: 19
HDD size: 2.5
Number of SATA connectors: 2
Product model code: NUC11PAHI3
Units per Shipping Box: 1
Unit Calculated Volume: 0.00231
Product Net Weight: 1
Unit Calculated Weight: 1
