Summary: Intel NUC 11 Pro. Chassis type: UCFF, Product type: Mini PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: M.2, Serial ATA III. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6 (802.11ax). Power supply: 28 W
Vendor Homepage: https://ark.intel.com/content/www/us/en/ark/products/205594/intel-nuc-11-pro-kit-nuc11tnhi5.html

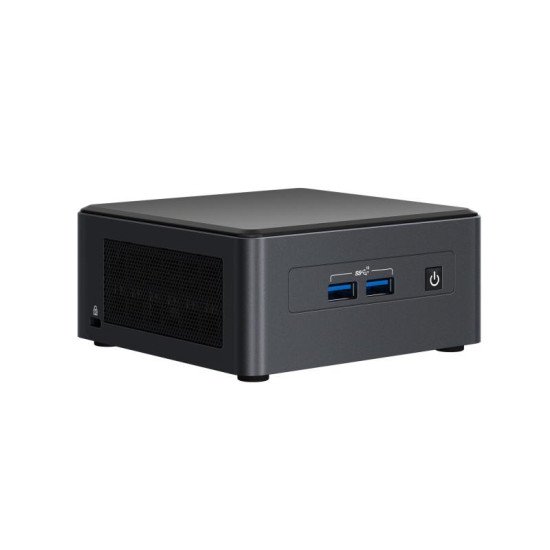

Name: PC KIT NUC 11 PRO CI5-1135G7/NUC11TNHI5 ASUS
Category Code: COK
Model: NUC 11 Pro Kit
Chassis type: UCFF
Product colour: Black
On/off switch: Yes
Product type: Mini PC barebone
Status: Launched
ARK ID: 205594
Processor manufacturer: Intel
Processor family: Intel Core i5
Processor generation: 11th gen Intel Core i5
Processor model: i5-1135G7
Processor cores: 4
Processor threads: 8
Processor boost frequency: 4.2
Built-in processor: Yes
Processor lithography: 10
Processor cache: 8
Thermal Design Power (TDP): 28
CPU configuration (max): 1
Memory slots type: SO-DIMM
Number of DIMM slots: 2
Number of memory slots: 2
Maximum internal memory: 64
Memory channels: Dual-channel
Memory voltage: 1.2
Supported memory clock speeds: 3200
Supported memory types: DDR4-SDRAM
Supported storage drive types: HDD & SSD
Storage drive sizes supported: 2.5/M.2
SSD form factor: M.2
Storage drive interface: M.2,Serial ATA III
Number of storage drives supported: 3
Graphics card family: Intel
On-board graphics card model: Intel Iris Xe Graphics
Number of displays supported: 4
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
WLAN controller model: Intel Wi-Fi 6 AX201
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth: Yes
LAN controller: Intel I225-LM
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Internal USB 2.0 ports quantity: 2
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity: 1
HDMI ports quantity: 2
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
M.2 card slot (storage): 2280 NVMe (M); 2242 SATA (B)
M.2 card slot (wireless): 2230 (E-key) (E)
Number of SATA III connectors: 1
Serial port via internal header: Yes
Thunderbolt 3 ports quantity: 1
Thunderbolt ports quantity: 2
USB ports quantity: 4
PCI Express slots version: 4.0
Motherboard form factor: UCFF
Commodity Classification Automated Tracking System (CCATS): G157815L2
Export Control Classification Number (ECCN): 5A992C
Idle States: Yes
Intel ME Firmware Version: 15
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel AES New Instructions (Intel AES-NI): Yes
Intel Platform Trust Technology (Intel PTT): Yes
Windows operating systems supported: Windows 10 IoT Enterprise/Windows 10 x64
Linux operating systems supported: RedHat EL Linux/Ubuntu 20.04 LTS
Compatible operating systems: Windows 10 IoT Enterprise*|Linux*
Harmonized System (HS) code: 84713000
Power supply type: External AC adapter
AC adapter output voltage: 12 - 24
Number of power supply units: 1
Power supply: 28
Width: 117
Depth: 112
Height: 54
Launch date: Q121
Additional headers: Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
DC input voltage: 12 - 20
HDD size: 2.5
Number of SATA connectors: 1
Product model code: NUC11TNHI5
Units per Shipping Box: 1
Unit Calculated Volume: 0.00308
Product Net Weight: 1
Unit Calculated Weight: 1
