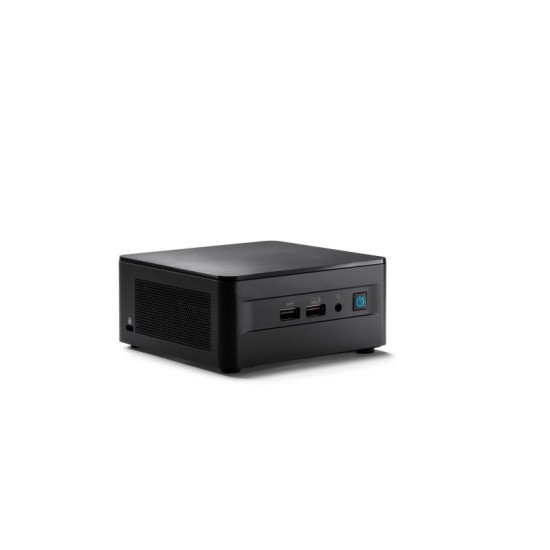

Summary: Intel NUC 12 Pro Kit NUC12WSHi7. Chassis type: UCFF, Product type: Mini PC barebone. BIOS type: EEPROM. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD, Storage drive interface: M.2, Serial ATA III. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Cooling type: Active. Power supply: 120 W
Vendor Homepage: https://www.intel.com/
Name: PC KIT NUC 12 PRO CI7-1260P/NUC12WSHI7 ASUS
Category Code: COK
Model: NUC 12 Pro Kit
Chassis type: UCFF
Product colour: Black
Cooling type: Active
On/off switch: Yes
LED indicators: Yes
Cable lock slot: Yes
Cable lock slot type: Kensington
Product type: Mini PC barebone
Status: Launched
Processor manufacturer: Intel
Processor family: Intel Core i7
Processor generation: 12th gen Intel Core i7
Processor model: i7-1260P
Processor cores: 12
Processor boost frequency: 4.7
Built-in processor: Yes
Processor cache: 18
Thermal Design Power (TDP): 35
CPU configuration (max): 1
Memory slots type: SO-DIMM
Number of DIMM slots: 2
Number of memory slots: 2
Maximum internal memory: 64
Memory channels: Dual-channel
Memory voltage: 1.2
Supported memory clock speeds: 3200
Supported memory types: DDR4-SDRAM
Supported storage drive types: SSD
Storage drive sizes supported: 2.5/M.2
SSD form factor: M.2
Storage drive interface: M.2,Serial ATA III
NVMe: Yes
Number of storage drives supported: 3
On-board graphics card: Yes
Graphics card family: Intel
On-board graphics card model: Intel Iris Xe Graphics
Maximum resolution: 7680 x 4320
Number of displays supported: 4
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
WLAN controller model: Intel Wi-Fi 6E AX211
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth: Yes
Bluetooth version: 5.3
LAN controller: Intel I225-V
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
HDMI ports quantity: 2
HDMI version: 2.0b
Combo headphone/mic port: Yes
Ethernet LAN (RJ-45) ports: 1
M.2 card slot (storage): 2280 NVMe (M); 2242 SATA (B)
M.2 card slot (wireless): 2230 (E-key) (E)
Thunderbolt 4 ports quantity: 2
USB ports quantity: 4
DC-in jack: Yes
PCI Express slots version: 3.0/4.0
Motherboard form factor: UCFF
Number of processors supported: 1
BIOS type: EEPROM
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0
Audio output channels: 7.1
Commodity Classification Automated Tracking System (CCATS): G157815L2
Export Control Classification Number (ECCN): 5A992C
Execute Disable Bit: Yes
Intel Flex Memory Access: Yes
Intel ME Firmware Version: 16
Intel Trusted Execution Technology: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel AES New Instructions (Intel AES-NI): Yes
Intel High Definition Audio (Intel HD Audio): Yes
Intel Platform Trust Technology (Intel PTT): Yes
Windows operating systems supported: Windows 10 IoT Enterprise/Windows 10 x64/Windows 11 x64
Linux operating systems supported: Yes
Compatible operating systems: Windows 10 IoT Enterprise*|Linux*
Harmonized System (HS) code: 8471500150
Power supply type: External AC adapter
Power supply: 120
Operating temperature (T-T): 0 - 40
Storage temperature (T-T): -20 - 60
Width: 117
Depth: 112
Height: 54
Power cord included: Yes
Launch date: Q322
Additional headers: Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
Number of SATA connectors: 1
Product model code: NUC12WSHI7
Units per Shipping Box: 1
Unit Calculated Volume: 0.003876
Product Net Weight: 1
Unit Calculated Weight: 1
