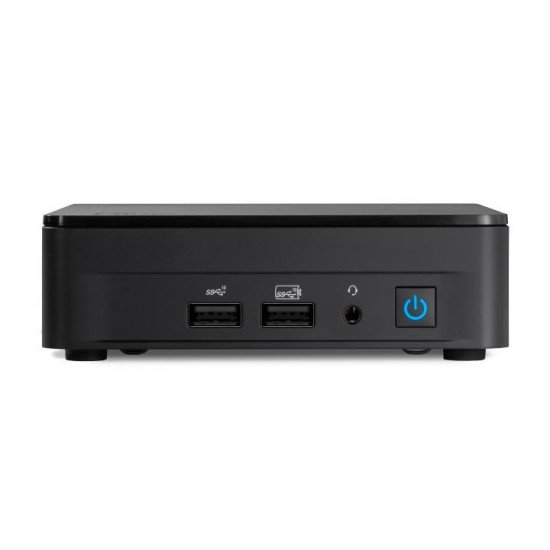

Summary: Intel NUC 13 Pro Kit NUC13ANKi3. Chassis type: UCFF, Product type: Mini PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express, Serial ATA. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Cooling type: Active
Vendor Homepage: https://www.intel.com/
Name: PC KIT NUC 13 PRO CI3-1315U/NUC13ANKI3 ASUS
Category Code: COK
Chassis type: UCFF
Product colour: Black
Cooling type: Active
On/off switch: Yes
LED indicators: Yes
Product type: Mini PC barebone
Status: Launched
ARK ID: 233095
Product family: Intel NUC
Product codename: Arena Canyon
Processor manufacturer: Intel
Processor family: Intel Core i3
Processor generation: Intel Core i3-13xxx
Processor model: i3-1315U
Processor cores: 6
Processor threads: 8
Processor boost frequency: 4.5
Performance cores: 2
Efficient cores: 4
Built-in processor: Yes
Performance-core boost frequency: 4.5
Efficient-core boost frequency: 3.3
Processor cache: 10
CPU configuration (max): 1
Processor codename: Raptor Lake
Memory slots type: SO-DIMM
Number of DIMM slots: 2
Number of memory slots: 2
Maximum internal memory: 64
Memory channels: Dual-channel
Memory voltage: 1.2
Supported memory clock speeds: 3200
Supported memory types: DDR4-SDRAM
Non-ECC: Yes
Supported storage drive types: SSD
Storage drive sizes supported: M.2
SSD form factor: M.2
Storage drive interface: PCI Express,Serial ATA
NVMe: Yes
Number of storage drives supported: 2
Graphics card family: Intel
On-board graphics card model: Intel Iris Xe Graphics
Maximum resolution: 7680 x 4320
Number of displays supported: 4
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
WLAN controller model: Intel Wi-Fi 6E AX211
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth: Yes
Bluetooth version: 5.3
LAN controller: Intel I226-V
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
Combo headphone/mic port: Yes
Ethernet LAN (RJ-45) ports: 1
M.2 card slot (storage): 2280 NVMe (M); 2242 SATA (B)
M.2 card slot (wireless): 2230 (E-key) (E)
Number of SATA III connectors: 1
Thunderbolt 4 ports quantity: 2
USB ports quantity: 4
DC-in jack: Yes
PCI Express slots version: 4.0
Number of M.2 (M) slots: 1
Motherboard form factor: UCFF
Commodity Classification Automated Tracking System (CCATS): G157815L2
Export Control Classification Number (ECCN): 5A992C
Execute Disable Bit: Yes
Intel Flex Memory Access: Yes
Intel ME Firmware Version: 16.1
Intel Trusted Execution Technology: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel AES New Instructions (Intel AES-NI): Yes
Intel High Definition Audio (Intel HD Audio): Yes
Intel Platform Trust Technology (Intel PTT): Yes
Windows operating systems supported: Windows 10 IoT Enterprise/Windows 11 x64
Linux operating systems supported: RedHat EL Linux/Yes
Compatible operating systems: Windows 10 IoT Enterprise*|Ubuntu*|Linux*
Harmonized System (HS) code: 8471500150
Power supply type: External AC adapter
Width: 117
Depth: 112
Height: 37
Launch date: Q123
Additional headers: Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
DC input voltage: 12 - 20
Product model code: NUC13ANKI3
Units per Shipping Box: 1
Unit Calculated Volume: 0.00306
Product Net Weight: 1.5
Unit Calculated Weight: 2
