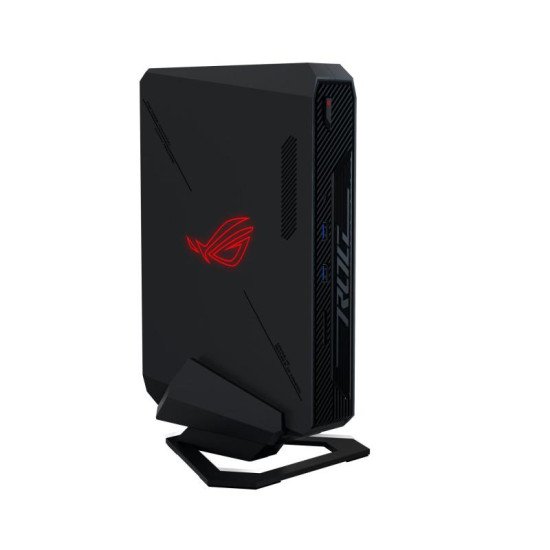

PC NUC 14 CU7-155H/16GB RNUC14SRKU7168A2I ASUS

Technical Specifications

• Summary: ASUS ROG NUC 14 RNUC14SRKU7168A2I. Processor family: Intel Core Ultra 7, Processor model: 155H. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel Arc Graphics, Discrete graphics card model: NVIDIA GeForce RTX 4060. Wi-Fi. Operating system installed: Windows 11 Home. Power supply: 330 W. Chassis type: Mini PC. Product type: Mini PC. Product colour: Black
• Vendor Homepage: https://rog.asus.com/desktops/mini-pc/rog-nuc/
• Name: PC NUC 14 CU7-155H/16GB RNUC14SRKU7168A2I ASUS
• Category Code: DTM
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 7
• Processor generation: Intel Core Ultra (Series 1)
• Processor model: 155H
• Processor cores: 16
• Processor threads: 22
• Performance cores: 6
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 4.8
• Efficient-core Max Turbo Frequency: 3.8
• Low Power Efficient-core Max Turbo Frequency: 2.5
• Performance-core base frequency: 1.4
• Efficient-core base frequency: 0.9
• Low Power Efficient-core Base Frequency: 700
• Processor cache: 24
• Processor cache type: Smart Cache
• Number of processors installed: 1
• Maximum turbo power: 115
• Processor base power: 28
• Internal memory: 16
• Maximum internal memory: 64
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 2 x 8
• Memory slots: 2x SO-DIMM
• Memory channels: Dual-channel
• Storage media: SSD
• Total storage capacity: 512
• Number of storage drives installed: 1
• Number of storage drives supported: 3
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• On-board graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 4060
• Discrete graphics memory type: GDDR6
• Number of discrete graphics cards: 1
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc Graphics
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000/2500
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
• WLAN controller manufacturer: Killer
• Bluetooth: Yes
• Bluetooth version: 5.3
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
• Intel Thunderbolt 4: Yes
• Thunderbolt 4 ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 2
• DisplayPort version: 1.4a
• Ethernet LAN (RJ-45) ports: 1
• Headphone outputs: 1
• Line-out: Yes
• Combo headphone/mic port: Yes
• DC-in jack: Yes
• Number of front USB ports: 2
• Number of rear USB ports: 4
• Chassis type: Mini PC
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Product colour: Black
• Product type: Mini PC
• Operating system installed: Windows 11 Home
• Power supply: 330
• Width: 270
• Depth: 180
• Height: 50
• CPU Family name: Intel Core Ultra
• CPU Model Number: u7-155H
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01732
• Unit Calculated Weight: 4
