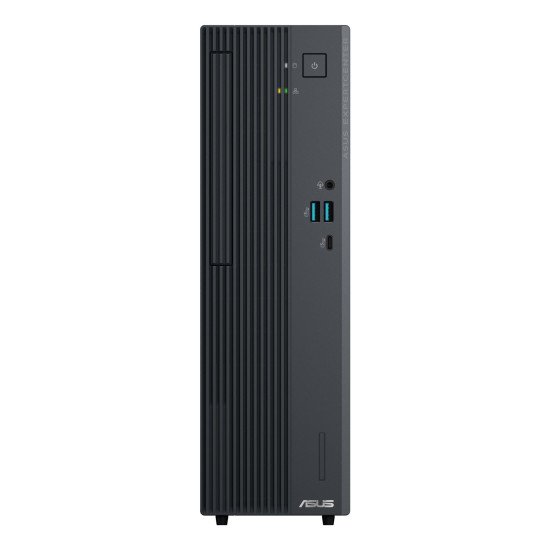

ExpertCenter P500 SFF

Technical Specifications

• Summary: ASUS ExpertCenter P500 SFF P500SV-05210H0020. Processor family: Intel Core 5, Processor model: 210H. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Power supply: 180 W. Chassis type: SFF. Product type: PC. Weight: 5.06 kg. Product colour: Grey
• Vendor Homepage: https://www.asus.com/displays-desktops/tower-pcs/expertcenter/asus-expertcenter-p500-sff-p500sv/
• Name: PC P500SV C5-210H 16/512GB/P500SV-05210H0020 ASUS
• Category Code: DT
• Model: P500SV-05210H0020
• Desktop Computer Family name: ExpertCenter
• Chassis type: SFF
• Colour name: Grey
• Number of 3.5" bays: 1
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Product colour: Grey
• Introduction year: 2025
• Processor manufacturer: Intel
• Processor family: Intel Core 5
• Processor generation: Intel Core (Series 2)
• Processor model: 210H
• Processor cores: 8
• Processor threads: 12
• Processor boost frequency: 4.8
• Performance cores: 4
• Efficient cores: 4
• Efficient-core Max Turbo Frequency: 3.6
• Performance-core base frequency: 2.2
• Efficient-core base frequency: 1.6
• Processor cache: 12
• Processor cache type: Smart Cache
• Maximum turbo power: 115
• Processor base power: 45
• Internal memory: 16
• Maximum internal memory: 64
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 1 x 16
• Memory slots: 2x DIMM
• Storage media: SSD
• Total storage capacity: 512
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• M.2 SSD size: 2280 (22 x 80 mm)
• On-board graphics card: Yes
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000
• Cabling technology: 10/100/1000Base-T(X)
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 1.4
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• Ethernet LAN (RJ-45) ports: 1
• Line-out: Yes
• Line-in: Yes
• Combo headphone/mic port: Yes
• Number of front audio ports: 1
• Number of front USB ports: 3
• Number of rear USB ports: 4
• Number of rear audio ports: 3
• Number of SATA III connectors: 2
• PCI Express x16 (Gen 4.x) slots: 1
• Market positioning: Business
• Audio system: High Definition Audio
• Audio output channels: 7.1
• Password protection: Yes
• Password protection type: HDD/User
• Product type: PC
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Power supply: 180
• Power supply input voltage: 100 - 240
• Power supply input frequency: 50 - 60
• 80 PLUS certification: 80 PLUS Bronze
• Compliance certificates: REACH
• Sustainability certificates: ENERGY STAR/EPEAT Silver
• Width: 93
• Depth: 296
• Height: 309
• Weight: 5060
• Package width: 490
• Package depth: 168
• Package height: 510
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.04248
• Unit Calculated Weight: 5.4
