TD2223-2 22

TD2223-2 22
TD2223-2 22
  • Display diagonal: 22
  • Display resolution: 1920 x 1080
  • Panel type: VA
  • Touchscreen: Yes
  • Response time: 6.5
  • Screen shape: Flat
  • 19,358ден.
    • Достапност: Има залиха
    • Шифра: 452513
    • Гарантен рок: 12 months
    • Рок на испорака: 14.02
    Сподели

    Technical Specifications

    • Description:

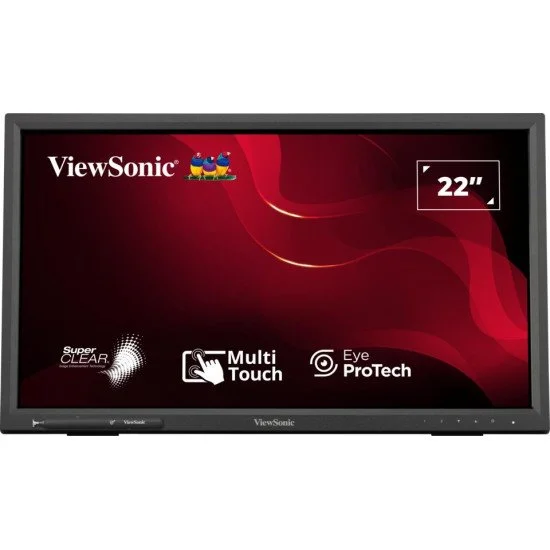

      The ViewSonic® TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.

      Intuitive Multi-touch Experience
      An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223-2 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.

      Operating System Support
      This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

      Simple and Safer Way to Interact
      This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.

      Anti-scratch Touchscreen
      With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

      Adjustable Tilt
      This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.

      Full HD 1080p
      Full HD 1920x1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience mind-blowing clarity and detail while working, gaming, or enjoying the latest show premieres.

      Dual Integrated Speakers
      With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.

      Relieve your Eyes from Strain
      Reduce your eye strain and keep your eyes feeling fresh. Flicker-Free technology and a Blue Light Filter eliminate screen flickering from extended viewing periods.

      Dimension & I/O Ports
      Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.

      • Intuitive 10-point touchscreen
      • Finger, stylus, and glove touch compatible
      • Magnetic pen placeholder
      • Adjustable back tilt up to 40-degrees
      • Scratch-resistant 7H hardness screen

    • Summary: Viewsonic TD2223-2. Display diagonal: 55.9 cm (22"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Display surface: Gloss, Response time: 6.5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 2.0. VESA mounting. Product colour: Black
    • Vendor Homepage: https://www.viewsonic.com/global/products/lcd/TD2223
    • Name: MONITOR LCD 22" TOUCH/BLACK TD2223-2 VIEWSONIC
    • Category Code: LC3
    • Model: TD2223-2
    • Display diagonal: 22
    • Display resolution: 1920 x 1080
    • HD type: Full HD
    • Native aspect ratio: 16:9
    • Display technology: LCD
    • Panel type: VA
    • LED backlight: Yes
    • Touchscreen: Yes
    • Touchscreen technology: Infrared
    • Touch technology: Multi-touch
    • Number of simultaneous touchpoints: 10
    • Display brightness (typical): 250
    • Response time: 6.5
    • Display surface: Gloss
    • Screen shape: Flat
    • Contrast ratio (typical): 3000:1
    • Contrast ratio (dynamic): 20000000:1
    • Maximum refresh rate: 75
    • Viewing angle, horizontal: 178
    • Viewing angle, vertical: 178
    • Display number of colours: 16.7 million colours
    • Pixel pitch: 0.249 x 0.241
    • Display diagonal (metric): 55.9
    • Colour depth: 8
    • sRGB coverage (typical): 104
    • NTSC coverage (typical): 72
    • NVIDIA G-SYNC: No
    • AMD FreeSync: No
    • Flicker-free technology: Yes
    • Low Blue Light technology: Yes
    • Number of speakers: 2
    • RMS rated power: 4
    • Built-in speaker(s): Yes
    • Built-in camera: No
    • Market positioning: Office
    • Product colour: Black
    • Feet colour: Black
    • Glass thickness: 2
    • Built-in USB hub: Yes
    • USB hub version: 2.0
    • Number of USB Type-B upstream ports quantity: 1
    • USB Type-A downstream ports quantity: 2
    • VGA (D-Sub) ports quantity: 1
    • DVI port: Yes
    • DVI-D ports quantity: 1
    • HDMI: Yes
    • HDMI ports quantity: 1
    • HDMI version: 1.4
    • Headphone out: Yes
    • Headphone outputs: 1
    • Headphone connectivity: 3.5 mm
    • AC (power) in: Yes
    • VESA mounting: Yes
    • Panel mounting interface: 100 x 100
    • Wall mountable: Yes
    • Cable lock slot: Yes
    • Cable lock slot type: Kensington
    • Height adjustment: No
    • Tilt adjustment: Yes
    • Tilt angle range: 20 - 40
    • On Screen Display (OSD): Yes
    • Power consumption (typical): 18.5
    • Power consumption (standby): 0.5
    • Power consumption (max): 21.8
    • AC input voltage: 100 - 240
    • Power supply type: Internal
    • Operating temperature (T-T): 0 - 40
    • Operating relative humidity (H-H): 20 - 90
    • Width (with stand): 519
    • Depth (with stand): 101
    • Height (with stand): 329
    • Weight (with stand): 4200
    • Width (without stand): 519
    • Depth (without stand): 61
    • Height (without stand): 308
    • Weight (without stand): 3700
    • Package width: 580
    • Package depth: 162
    • Package height: 405
    • Package weight: 5700
    • Stand included: Yes
    • Cables included: AC/Audio/HDMI/USB Type-A to USB Type-B
    • Quick start guide: Yes
    • Weight: 4200
    • Certification: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, KC, K-MEPS, BIS, CCC, China RoHS, China Energy Label, CECP
    • Pallet gross width: 1200
    • Pallet gross length: 1000
    • Pallet gross height: 2154
    • Products per master (outer) case: 1
    • Harmonized System (HS) code: 8528521000
    • Units per Pallet: 0
    • Unit Calculated Volume: 0.03805
    • Product Net Weight: 4.2
    • Unit Calculated Weight: 6
    • Energy efficiency class: E
    • Data Sheet (Link): https://eprel.ec.europa.eu/api/product/1781306/fiches?language=EN
    • EPREL Version Number: 2
    • EPREL Registration Number: 1781306
