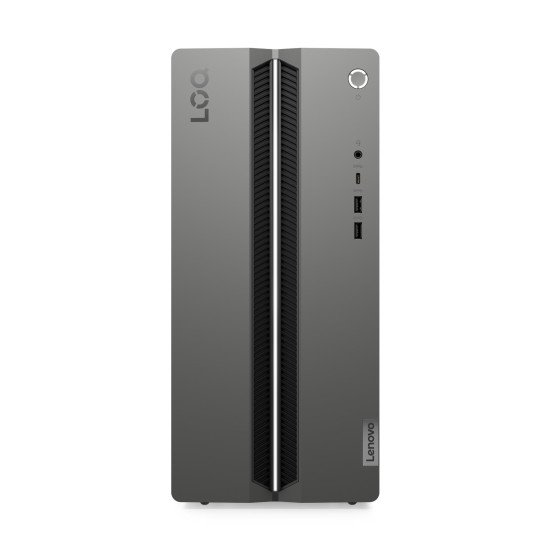

LOQ Tower 17IRR9

Technical Specifications

• Summary: Lenovo LOQ Tower 17IRR9. Processor family: Intel Core i7, Processor model: i7-14700. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770, Discrete graphics card model: NVIDIA GeForce RTX 5060 Ti. Wi-Fi. Power supply: 500 W. Chassis type: Tower. Product type: PC. Weight: 8 kg. Product colour: Grey
• Vendor Homepage: https://www.lenovo.com/gb/en/p/desktops/loq-desktops/lenovo-loq-tower-17irr9/len102q0002?orgRef=https%253A%252F%252Fwww.google.com%252F&srsltid=AfmBOoqOXL7Lig7n2oFYDHl64mEa8XrBSu678eur5IpYFyxMR2O1q9jL
• Name: PC LOQ-17IRR9 CI7-14700 16GB/1TB 90X000G7RI LENOVO
• Category Code: DT
• Model: Tower 17IRR9
• Desktop Computer Family name: LOQ
• Chassis type: Tower
• Colour name: Luna grey
• Volume: 17
• Placement supported: Vertical
• Number of 3.5" bays: 1
• Product colour: Grey
• Processor manufacturer: Intel
• Processor family: Intel Core i7
• Processor generation: Intel Core i7 (14th gen)
• Processor model: i7-14700
• Processor cores: 20
• Processor threads: 28
• Processor boost frequency: 5.4
• Performance cores: 8
• Efficient cores: 12
• Performance-core Max Turbo Frequency: 5.3
• Efficient-core Max Turbo Frequency: 4.2
• Performance-core base frequency: 2.1
• Efficient-core base frequency: 1.5
• Processor cache: 33
• Processor cache type: Smart Cache
• Number of processors installed: 1
• Maximum turbo power: 219
• Processor base power: 65
• Internal memory: 16
• Maximum internal memory: 32
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 1 x 16
• Memory slots: 2x DIMM
• Memory clock speed: 5600
• Non-ECC: Yes
• Storage media: SSD
• Total storage capacity: 1000
• Number of storage drives installed: 1
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• M.2 SSD size: 2280 (22 x 80 mm)
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• On-board graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5060 Ti
• Discrete graphics card memory: 8
• Discrete graphics memory type: GDDR7
• Number of discrete graphics cards: 1
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel UHD Graphics
• On-board graphics card model: Intel UHD Graphics 770
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.3
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
• VGA (D-Sub) ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Ethernet LAN (RJ-45) ports: 1
• Headphone outputs: 1
• Combo headphone/mic port: Yes
• PCI Express x1 (Gen 3.x) slots: 1
• PCI Express x16 (Gen 4.x) slots: 1
• Market positioning: Gaming
• Motherboard chipset: Intel B760
• Audio chip: Realtek ALC623-CG
• Audio system: High Definition Audio
• Password protection: Yes
• Password protection type: BIOS/Power on/Supervisor
• Product type: PC
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Power supply: 500
• Power supply input voltage: 100 - 240
• Power supply input frequency: 50/60
• Operating temperature (T-T): 10 - 35
• Storage temperature (T-T): -40 - 60
• Operating relative humidity (H-H): 20 - 80
• Storage relative humidity (H-H): 20 - 90
• Operating altitude: -15.2 - 3048
• Non-operating altitude: -15.2 - 10668
• Compliance certificates: RoHS
• Certification: ErP Lot 3
• Sustainability certificates: ENERGY STAR
• Width: 170
• Depth: 279
• Height: 376
• Weight: 8000
• Package width: 270
• Package depth: 525
• Package height: 395
• Package weight: 11100
• Mouse connectivity: Wired
• Mouse included: Yes
• Keyboard connectivity: Wired
• Keyboard included: Yes
• KB language: ENG
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.06048
• Unit Calculated Weight: 6
