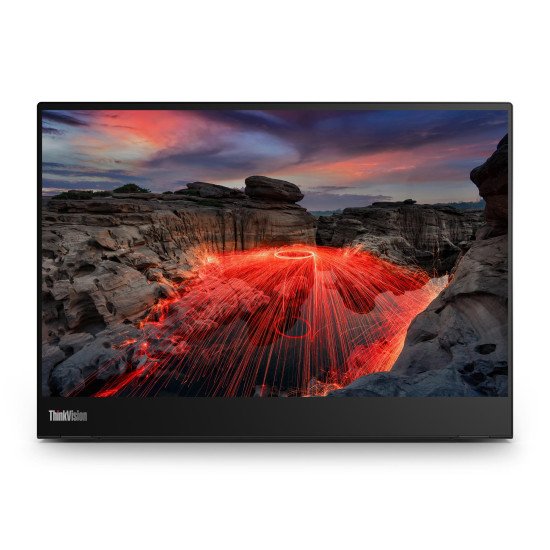

M14t Gen2 2.2K

Technical Specifications

• Summary: Lenovo ThinkVision M14t Gen 2 Monitor. Display diagonal: 35.6 cm (14"), Display resolution: 2240 x 1400 pixels, HD type: 2.2K, Display technology: LED, Response time: 8 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub. VESA mounting, Height adjustment. Product colour: Black
• Vendor Homepage: https://www.lenovo.com/
• Name: MONITOR LCD 14" M14T G2/63FDUAT6WL LENOVO
• Category Code: LC3
• Model: M14t Gen2
• Model name: ThinkVision M14t Gen 2 Monitor
• Display diagonal: 14
• Display resolution: 2240 x 1400
• HD type: 2.2K
• Native aspect ratio: 16:10
• Display technology: LED
• Panel type: IPS
• LED backlight: Yes
• Backlight type: W-LED
• Touchscreen: Yes
• Touchscreen technology: Capacitive
• Touch technology: Multi-touch
• Number of simultaneous touchpoints: 10
• Display brightness (typical): 300
• Response time: 8
• Screen shape: Flat
• Contrast ratio (typical): 1500:1
• Contrast ratio (dynamic): 3000000:1
• Maximum refresh rate: 60
• Viewing angle, horizontal: 178
• Viewing angle, vertical: 178
• Display number of colours: 16.7 million colours
• Response time (fast): 6
• Pixel pitch: 0.1346 x 0.1346
• Pixel density: 189
• Viewable size, horizontal: 301.6
• Viewable size, vertical: 188.5
• Colour depth: 8
• Colour gamut: 100
• sRGB coverage (typical): 100
• Low Blue Light technology: Yes
• Windows operating systems supported: Windows 10/Windows 11
• Market positioning: Smart
• Product colour: Black
• Colour name: Raven black
• Front bezel colour: Black
• Built-in USB hub: Yes
• USB upstream port type: USB Type-C
• Number of upstream ports: 2
• Number of USB Type-C upstream ports quantity: 2
• USB Type-C downstream ports quantity: 2
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Power Delivery (USB PD): Yes
• USB Power Delivery up to: 65
• Charging port type: USB Type-C
• VESA mounting: Yes
• Cable management: Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Height adjustment: Yes
• Adjustable height (max): 11
• Pivot: Yes
• Pivot angle: -90 - 90
• Tilt adjustment: Yes
• Tilt angle range: 0 - 90
• Power consumption (typical): 8
• Power consumption (max): 9.5
• Power consumption (off): 0.3
• Energy efficiency scale: A to G
• External power adapter: Yes
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -20 - 60
• Operating relative humidity (H-H): 10 - 80
• Storage relative humidity (H-H): 5 - 95
• Width (with stand): 314.8
• Depth (with stand): 96.7
• Height (with stand): 224.3
• Weight (with stand): 700
• Bezel width (side): 6.1
• Bezel width (top): 6.1
• Bezel width (bottom): 27.5
• Package width: 384
• Package depth: 76
• Package height: 277
• Package weight: 1900
• Stand included: Yes
• Cables included: USB Type-C to USB Type-C
• Quick start guide: Yes
• Sustainability certificates: ENERGY STAR/EPEAT Gold
• Compliance certificates: RoHS
• Certification: Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Low Blue Light
• Units per Pallet: 0
• Unit Calculated Volume: 0.008736
• Product Net Weight: 0.7
• Unit Calculated Weight: 1.9
• Energy efficiency class: C
• Data Sheet (Link): https://eprel.ec.europa.eu/api/product/1949561/fiches?language=EN
• EPREL Version Number: 2
• EPREL Registration Number: 1949561
