HD

Technical Specifications

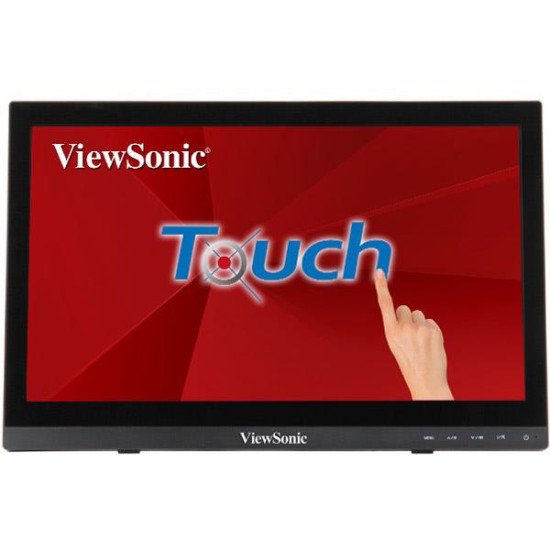

• Summary: Viewsonic TD1630-3. Display diagonal: 39.6 cm (15.6"), Display resolution: 1366 x 768 pixels, HD type: HD, Display technology: LCD, Response time: 12 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 90°, Viewing angle, vertical: 60°. Built-in speaker(s). Built-in USB hub. VESA mounting. Product colour: Black
• Vendor Homepage: https://www.viewsonic.com/in/products/lcd/TD1630-3.php
• Name: MONITOR LCD 16" TOUCH/TD1630-3 VIEWSONIC
• Category Code: LC3
• Model name: TD1630-3
• Display diagonal: 15.6
• Display resolution: 1366 x 768
• HD type: HD
• Native aspect ratio: 16:9
• Display technology: LCD
• Panel type: TN
• Touchscreen: Yes
• Touchscreen type: Multi-user
• Touchscreen technology: Projected capacitive system
• Touch technology: Multi-touch
• Number of simultaneous touchpoints: 10
• Display brightness: 220
• Response time: 12
• Screen shape: Flat
• Supported graphics resolutions: 1024 x 768 (XGA)/1152 x 870/1280 x 720 (HD 720)/1366 x 768/640 x 480 (VGA)/720 x 400/720 x 480/720 x 576/800 x 600 (SVGA)/832 x 624
• Contrast ratio (typical): 500:1
• Contrast ratio (dynamic): 10000000:1
• Maximum refresh rate: 60
• Viewing angle, horizontal: 90
• Viewing angle, vertical: 60
• Display number of colours: 262144 colours
• Pixel pitch: 0.252 x 0.252
• Horizontal scan range: 30 - 61
• Vertical scan range: 56 - 75
• Display diagonal (metric): 39.6
• Windows operating systems supported: Windows 10/Windows 7/Windows 8
• Mac operating systems supported: Yes
• Number of speakers: 2
• RMS rated power: 2
• Built-in speaker(s): Yes
• Product colour: Black
• Built-in USB hub: Yes
• VGA (D-Sub) ports quantity: 1
• HDMI: Yes
• HDMI ports quantity: 1
• HDMI version: 1.4
• Audio input: 1
• VESA mounting: Yes
• Panel mounting interface: 75 x 75
• Wall mountable: Yes
• Tilt adjustment: Yes
• Tilt angle range: 15 - 50
• Energy efficiency class (SDR): B
• Energy consumption (SDR) per 1000 hours: 6
• Power consumption (typical): 5.5
• AC input voltage: 100-240
• AC input frequency: 50 - 60
• Power supply type: AC
• European Product Registry for Energy Labelling (EPREL) code: 391332
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -20 - 60
• Operating relative humidity (H-H): 20 - 85
• Storage relative humidity (H-H): 5 - 90
• Width (with stand): 379.24
• Depth (with stand): 37.15
• Height (with stand): 247.12
• Weight (with stand): 1320
• Package width: 453
• Package depth: 86
• Package height: 389
• Package weight: 2500
• Cables included: AC/Audio (3.5mm)/USB/VGA
• Sustainability certificates: ErP
• Compliance certificates: CE/REACH/RoHS
• Display viewable area (HxV): 344.23 x 193.54
• Weight: 1300
• Certification: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS
• Pallet gross width: 1200
• Pallet gross length: 1000
• Pallet gross height: 2170
• Products per master (outer) case: 1
• Harmonized System (HS) code: 8528521000
• Included Accessories: 40W AC/DC Adapter (1.2m); Power Cable (1.5m); VGA Cable (1.5m); USB2.0 Cable (1.8m); Audio Cable (1.8m); Quick Start Guide
• Unit Calculated Volume: 0.01615
• Product Net Weight: 1.32
• Unit Calculated Weight: 2
• Energy efficiency class: B
• Data Sheet (Link): https://eprel.ec.europa.eu/api/product/391332/fiches?language=EN
• EPREL Version Number: 2
• EPREL Registration Number: 391332
