Technical Specifications

• Description:

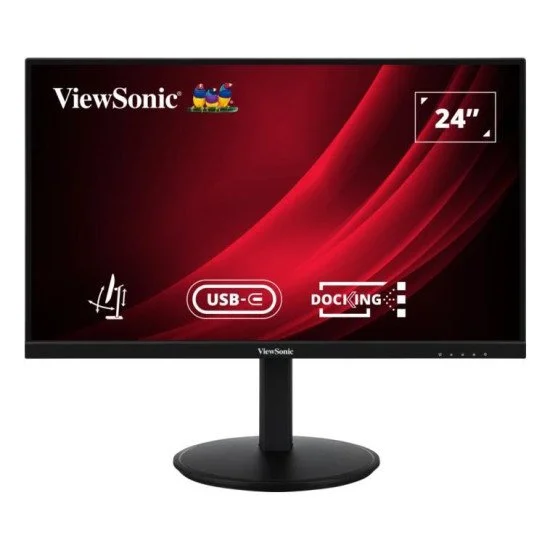

  The ViewSonic VG2409U-2 is a 24” FHD monitor featuring USB 3.2 Hub with 1 upstream, 2 downstream ports, HDMI, DisplayPort, and DisplayPort Out for business and home use. Equipped with 65W USB-C ports, ethernet, and daisy-chain support, the VG2409U-2 serves as a complete integrated docking station for charging, audiovisual and data transfer, and network connectivity, effectively reducing cable clutter. The 100hz variable refresh rate, Eye ProTech technology, and various ViewMode presets cater for optimal screen performance and comfortable viewing without tearing or stuttering. Expand your workspace and experience truly seamless, ergonomic multitasking on just one screen with a VESA-compatible mount at low energy consumption.

  Ergonomic Workstation
  Discover a monitor designed to overcome the challenges of the modern work setup

  Integrated Docking Station with Daisy Chain
  The docking capability of the VG2409U-2 streamlines workflows by eliminating the need for dongles and adapters. USB-C ensures seamless data, video, audio, and delivers 65W charging, complemented by a built-in ethernet port (RJ45) for stable, high-speed connectivity. The DisplayPort output can be easily daisy-chained to another monitor for a productivity-boosting workstation setup.

  Extraordinary Wide-angle Vision
  Enjoy vivid colors with consistent brightness and amazing accuracy no matter the vantage point. SuperClear® IPS monitor features ultra-wide 178-degree vertical and horizontal viewing angles that deliver the same image quality with true color accuracy and consistency from screen to print.

  Full HD 1080p
  Full HD 1920x1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience mind-blowing clarity and detail while working, gaming, or enjoying the latest show premieres.

  Smooth Visuals With 100Hz Variable Refresh Rate
  With a fast 100Hz screen variable refresh rate, you can experience a truly fluid visual display. This results in improved viewing clarity, reduced screen stutter during fast-moving action scenes, and benefits work-related tasks, reducing eye strain and increasing productivity.

  Connection Flexibility
  HDMI, DisplayPort(DP), and DisplayPort(DP) Out inputs give you the freedom to connect your monitor to a wide range of devices. Simplify your workspace, expand your connectivity options, and streamline data transfer with our monitor's integrated USB hub featuring a built-in RJ45 port for ethernet (RJ45).

  Complete Ergonomic Flexibility
  Effortlessly swivel the display up to 360° degrees, tilt up to -3.5°~28° degrees, raise up to 130 mm, and pivot up to 180° degrees for portrait viewing. The VG2409U-2 offers a full range of convenient flexibility for all tasks and workflows.

  Built-in Speakers
  Integrated with dual 2.5-watt stereo speakers as well as incredible screen performance, this monitor provides complete multi-sensory immersion.

  Eye ProTech for Comfortable Viewing
  Reduce your eye strain and maintain fresh-feeling eyes with ViewSonic Eye ProTech. The Flicker-Free technology eliminates screen flickering, while the Blue Light Filter minimizes harmful blue light from extended viewing periods, ensuring comfortable screen viewing.

  Color Rendering Options
  ViewSonic’s ViewMode offers “Game”, “Movie”, “Web”, “Text”, and “Mono” presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver optimized, satisfactory viewing.

  Certified Environmental Sustainability
  The VG2409U-2 is an ENERGY STAR-certified product that can save on energy costs while reducing greenhouse gases. The display is also TCO-certified for sustainability and registered as an EPEAT product.

  Dimension & I/O Ports
  Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.

  • Integrated USB-C docking station with Ethernet, Daisy Chain capability and power charge up to 65W
  • USB 3.2 hub with 1 upstream, 2 downstream ports, HDMI, and DisplayPort inputs for easy connectivity
  • 100Hz Variable refresh rate delivers fluid visuals
  • Ergonomic tilt, swivel, pivot and height adjustment capabilities
  • TCO, EnergyStar, EPEAT Silver certified for sustainability

• Summary: Viewsonic VG Series VG2409U-2. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub. VESA mounting, Height adjustment. Product colour: Black
• Vendor Homepage: https://www.viewsonic.com/global/products/lcd/VG2409U-2
• Name: MONITOR LCD 24" IPS/BLACK VG2409U-2 VIEWSONIC
• Category Code: LC3
• Display diagonal: 23.8
• Display resolution: 1920 x 1080
• HD type: Full HD
• Native aspect ratio: 16:9
• Display technology: LED
• Panel type: IPS
• LED backlight: Yes
• Touchscreen: No
• Display brightness (typical): 350
• Response time: 4
• Anti-glare screen: Yes
• Screen shape: Flat
• Contrast ratio (typical): 1300:1
• Contrast ratio (dynamic): 50000000:1
• Maximum refresh rate: 100
• Viewing angle, horizontal: 178
• Viewing angle, vertical: 178
• Display number of colours: 16.7 million colours
• Pixel pitch: 0.275 x 0.275
• Display diagonal (metric): 61
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: High Dynamic Range 10 (HDR10)
• Colour depth: 8
• sRGB coverage (typical): 104
• NTSC coverage (typical): 72
• AMD FreeSync: Yes
• AMD FreeSync type: FreeSync
• Number of speakers: 2
• RMS rated power: 5
• Built-in speaker(s): Yes
• Built-in camera: No
• Market positioning: Home
• Product colour: Black
• Built-in USB hub: Yes
• Number of USB Type-B upstream ports quantity: 1
• Number of USB Type-C upstream ports quantity: 1
• USB Type-A downstream ports quantity: 2
• HDMI: Yes
• HDMI ports quantity: 1
• HDMI version: 1.4
• DisplayPorts quantity: 1
• Headphone out: Yes
• Headphone outputs: 1
• Headphone connectivity: 3.5 mm
• Ethernet LAN: Yes
• VESA mounting: Yes
• Panel mounting interface: 100 x 100
• Wall mountable: Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Height adjustment: Yes
• Adjustable height (max): 130
• Pivot: Yes
• Pivot angle: -90 - 90
• Swivelling: Yes
• Swivel angle range: 0 - 360
• Tilt adjustment: Yes
• Tilt angle range: -3.5 - 28
• Energy efficiency class (SDR): E
• Energy efficiency class (HDR): E
• Energy consumption (SDR) per 1000 hours: 17
• Energy consumption (HDR) per 1000 hours: 19
• Power consumption (typical): 15.5
• Power consumption (standby): 0.5
• Power consumption (max): 19.5
• AC input voltage: 100 - 240
• AC input frequency: 50/60
• Power supply type: Internal
• Operating temperature (T-T): 0 - 40
• Operating relative humidity (H-H): 20 - 90
• Width (with stand): 539.7
• Depth (with stand): 233.29
• Height (with stand): 519.89
• Weight (with stand): 5600
• Width (without stand): 539.7
• Depth (without stand): 50.9
• Height (without stand): 323.18
• Weight (without stand): 3500
• Package width: 622
• Package depth: 144
• Package height: 520
• Package weight: 7200
• Package type: Box
• Stand included: Yes
• Manual: Yes
• Weight: 5600
• Pallet gross width: 1200
• Pallet gross length: 1000
• Pallet gross height: 2200
• Products per master (outer) case: 1
• Harmonized System (HS) code: 8528521000
• Units per Pallet: 0
• Unit Calculated Volume: 0.04586
• Product Net Weight: 4
• Unit Calculated Weight: 4
• Energy efficiency class: E
• Data Sheet (Link): https://eprel.ec.europa.eu/api/product/2056991/fiches?language=EN
• EPREL Version Number: 2
• EPREL Registration Number: 2056991
