Full HD

Technical Specifications

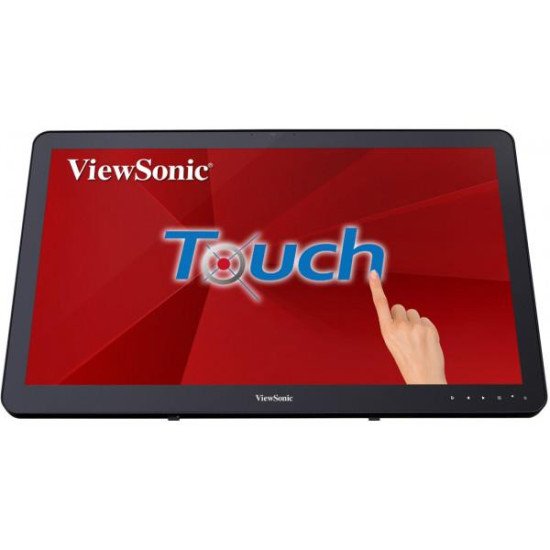

• Summary: Viewsonic TD2430. Display diagonal: 59.9 cm (23.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: Black
• Vendor Homepage: https://www.viewsonic.com/la/td2430.html
• Name: MONITOR LCD 24" TOUCH/BLACK TD2430 VIEWSONIC
• Category Code: LC3
• Model name: TD2430
• Display diagonal: 23.6
• Display resolution: 1920 x 1080
• HD type: Full HD
• Native aspect ratio: 16:9
• Display technology: LCD
• Panel type: VA
• Touchscreen: Yes
• Touchscreen type: Multi-user
• Touchscreen technology: Projected capacitive system
• Touch technology: Multi-touch
• Number of simultaneous touchpoints: 10
• Display brightness: 200
• Response time: 5
• Screen shape: Flat
• Contrast ratio (typical): 3000:1
• Contrast ratio (dynamic): 50000000:1
• Maximum refresh rate: 76
• Viewing angle, horizontal: 178
• Viewing angle, vertical: 178
• Pixel pitch: 0.2715 x 0.2715
• Horizontal scan range: 24 - 82
• Vertical scan range: 50 - 75
• Display diagonal (metric): 60
• Windows operating systems supported: Windows 10/Windows 7/Windows 8
• Mac operating systems supported: Yes
• Linux operating systems supported: Yes
• Other operating systems supported: Android
• Number of speakers: 2
• RMS rated power: 5
• Built-in speaker(s): Yes
• Product colour: Black
• Built-in USB hub: Yes
• USB hub version: 3.2 Gen 1 (3.1 Gen 1)
• USB upstream port type: USB Type-B
• Number of upstream ports: 1
• Number of USB Type-B upstream ports quantity: 1
• USB Type-A downstream ports quantity: 2
• VGA (D-Sub) ports quantity: 1
• HDMI: Yes
• HDMI ports quantity: 1
• HDMI version: 1.4
• DisplayPorts quantity: 1
• DisplayPort version: 1.2
• Headphone out: Yes
• Headphone outputs: 1
• VESA mounting: Yes
• Panel mounting interface: 100 x 100
• Wall mountable: Yes
• Tilt adjustment: Yes
• Tilt angle range: 20 - 53
• Energy efficiency class (SDR): E
• Energy consumption (SDR) per 1000 hours: 15
• Power consumption (typical): 25
• AC input voltage: 100-240
• AC input frequency: 50 - 60
• Power supply type: AC
• European Product Registry for Energy Labelling (EPREL) code: 404623
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -20 - 60
• Operating relative humidity (H-H): 20 - 90
• Storage relative humidity (H-H): 5 - 90
• Width (with stand): 573
• Depth (with stand): 47
• Height (with stand): 353
• Weight (with stand): 5510
• Package width: 643
• Package depth: 140
• Package height: 435
• Package weight: 7100
• Cables included: AC/Audio (3.5mm)/HDMI/USB
• Sustainability certificates: ENERGY STAR/ErP
• Compliance certificates: CE/REACH/RoHS
• Display viewable area (HxV): 521.28 x 293.22
• Mobile operating systems supported: Android
• Weight: 5500
• Certification: cTUVus, FCC-B, ICES003, Energy Star 8.0, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, CCC, China RoHS, China Energy Label, CECP
• Pallet gross width: 1200
• Pallet gross length: 1000
• Pallet gross height: 1890
• Products per master (outer) case: 1
• Harmonized System (HS) code: 8528521000
• Unit Calculated Volume: 0.039
• Product Net Weight: 5.5
• Unit Calculated Weight: 7.1
• Energy efficiency class: E
• Data Sheet (Link): https://eprel.ec.europa.eu/api/product/404623/fiches?language=EN
• EPREL Version Number: 2
• EPREL Registration Number: 404623
