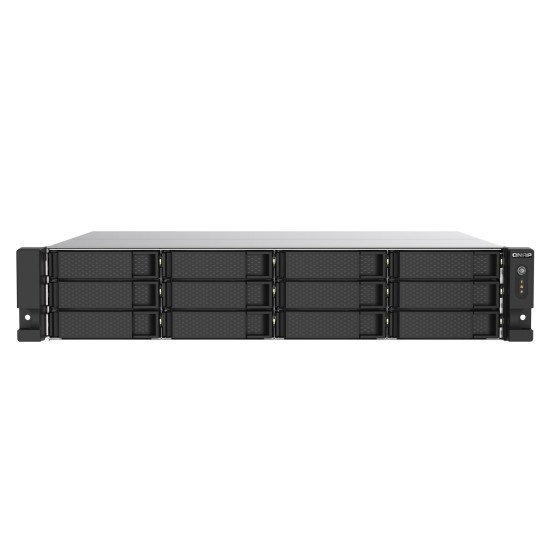

NAS Rack (2U)

Technical Specifications

• Summary: QNAP TS-1273AU-RP-8G. Type: NAS. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Ryzen Embedded, Processor model: V1500B, Processor frequency: 2.2 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QNAP QTS
• Vendor Homepage: https://www.qnap.com/en/product/ts-1273au-rp
• Name: NAS STORAGE RACKST 12BAY 2U/NO HDD TS-1273AU-RP-8G QNAP
• Category Code: STS
• Model: TS-1273AU-RP-8G
• Model name: TS-1273AU-RP-8G
• Storage drive capacity: 0
• Storage drive interface: Serial ATA II,Serial ATA III
• Supported storage drive interfaces: Serial ATA II,Serial ATA III
• Storage drive size: 2.5/3.5
• Storage drive sizes supported: 2.5/3.5
• RAID support: Yes
• RAID levels: 0/1/10/5/50/6/60/JBOD
• Online RAID migration: Yes
• Online RAID expansion: Yes
• RAID rebuild: Yes
• Hot-swap drive bays: Yes
• Supported file systems: ext3/ext4/FAT32/HFS+/NTFS
• Total installed storage capacity: 0
• Number of storage drives supported: 12
• Supported storage drive types: HDD & SSD
• Bad block scan: Yes
• Disk roaming: Yes
• Processor manufacturer: AMD
• Processor generation: AMD Ryzen Embedded V1000 Series
• Processor family: Ryzen Embedded
• Processor model: V1500B
• Processor frequency: 2.2
• Processor cores: 4
• Processor threads: 8
• L2 cache: 2
• L3 cache: 4
• Internal memory: 8
• Internal memory type: DDR4
• Maximum RAM supported: 32
• Memory form factor: DIMM
• Memory slots: 2
• Flash memory: 5000
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000/2500
• DHCP client: Yes
• DHCP server: Yes
• Jumbo frames support: Yes
• iSCSI support: Yes
• Wake-on-LAN ready: Yes
• Dynamic DNS (DDNS): Yes
• Link aggregation: Yes
• Load balancing system: Yes
• Supported network protocols: PPTP, L2TP/IPSec, OpenVPN, QBelt
• WLAN adapter supported: Yes
• USB port: Yes
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
• Ethernet LAN (RJ-45) ports: 2
• Chassis type: Rack (2U)
• Cooling type: Active
• Product colour: Aluminium/Black
• Number of fans: 2
• Fan diameter: 80
• Fan diameter 2: 80
• Type: NAS
• Device class: Small & Medium Business
• Backup function: Yes
• Backup features: Cloud/iSCSI LUN
• Buzzer: Yes
• Multilingual support: Yes
• Snapshot: Yes
• Access Control List (ACL): Yes
• Browser supported: Apple Safari 7+, Google Chrome, Mozilla Firefox
• Built-in FTP server: Yes
• Disk scan: Yes
• Hot spare: Yes
• On/off switch: Yes
• Reset button: Yes
• S.M.A.R.T. support: Yes
• Security algorithms: 256-bit AES/FIPS 140-2/HTTPS/SNMPv2/SNMPv3/SSL/TLS
• Share folder: CIFS/SMB
• System log: Yes
• Universal Plug and Play (UPnP): Yes
• USB copy function: Yes
• Operating system installed: QNAP QTS
• Operating system version: 5.0.0
• Windows operating systems supported: Windows 10/Windows 7/Windows 8
• Linux operating systems supported: Yes
• Mac operating systems supported: Mac OS X 10.10 Yosemite/Mac OS X 10.11 El Capitan/Mac OS X 10.12 Sierra/Mac OS X 10.13 High Sierra/Mac OS X 10.14 Mojave/Mac OS X 10.15 Catalina/Mac OS X 10.15.3 Catalina
• Server operating systems supported: Windows Server 2008 R2/Windows Server 2008 R2 x64/Windows Server 2012/Windows Server 2012 R2/Windows Server 2012 R2 x64/Windows Server 2012 x64/Windows Server 2016/Windows Server 2016 x64/Windows Server 2019
• Other operating systems supported: Solaris 10
• Power supply location: Built-in
• Power supply unit (PSU) capacity: 300
• Number of power supply units: 2
• Power consumption (typical): 78.92
• Power consumption (sleep): 43.67
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Width: 425.3
• Depth: 371
• Height: 89.5
• Weight: 9690
• Package width: 595
• Package depth: 600
• Package height: 270
• Package weight: 14620
• Package type: Box
• Operating temperature (T-T): 0 - 40
• Operating relative humidity (H-H): 5 - 95
• Storage temperature (T-T): -20 - 70
• Harmonized System (HS) code: 84714100
• Warranty period: 3
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0905
• Unit Calculated Weight: 14.5
