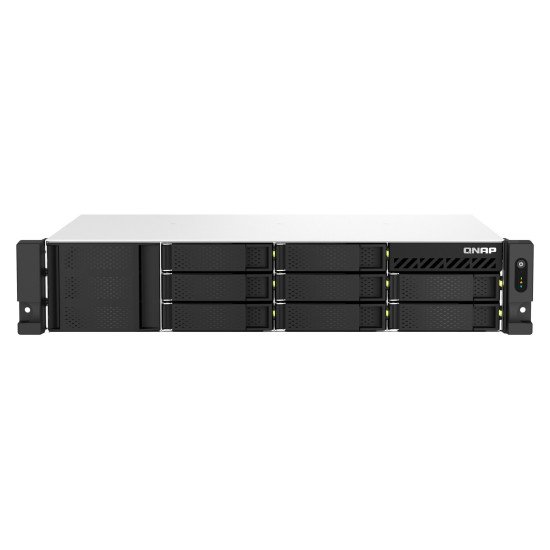

NAS Rack (2U)

Technical Specifications

• Summary: QNAP TS-864EU-RP-8G. Type: NAS. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Intel Celeron, Processor model: N5095. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QNAP Turbo System
• Vendor Homepage: https://www.qnap.com/en?ref=header_logo
• Name: NAS STORAGE RACKST 8BAY 2U RP/TS-864EU-RP-8G QNAP
• Category Code: STS
• Model: TS-864EU-RP-8G
• Model name: TS-864EU-RP-8G
• Storage drive capacity: 0
• Storage drive interface: Serial ATA III
• Supported storage drive interfaces: Serial ATA II,Serial ATA III
• Storage drive sizes supported: 2.5/3.5
• RAID support: Yes
• RAID levels: 0/1/10/5/50/6/60/JBOD
• Online RAID migration: Yes
• Online RAID expansion: Yes
• RAID rebuild: Yes
• Hot-swap drive bays: Yes
• Supported file systems: ext3/ext4/FAT32/HFS+/NTFS
• Total installed storage capacity: 0
• Number of storage drives supported: 8
• Supported storage drive types: HDD & SSD
• Disk roaming: Yes
• Processor manufacturer: Intel
• Processor family: Intel Celeron
• Processor model: N5095
• Processor boost frequency: 2.9
• Processor cores: 4
• Processor threads: 4
• Number of processors supported: 1
• On-board graphics card model: Intel UHD Graphics
• Internal memory: 8
• Internal memory type: DDR4
• Maximum RAM supported: 16
• Memory form factor: SO-DIMM
• Memory slots: 2
• Flash memory: 4000
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000/2500
• DHCP server: Yes
• Jumbo frames support: Yes
• iSCSI support: Yes
• Wake-on-LAN ready: Yes
• Dynamic DNS (DDNS): Yes
• USB port: Yes
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• HDMI ports quantity: 1
• HDMI version: 1.4b
• Ethernet LAN (RJ-45) ports: 2
• Concurrent connections: 1500
• Chassis type: Rack (2U)
• Cooling type: Active
• Product colour: Black
• Number of fans: 2
• Fan diameter: 80
• LED indicators: HDD/LAN/Power/Status
• Type: NAS
• Device class: Small & Medium Business
• Backup function: Yes
• Backup features: Cloud/iSCSI LUN
• Buzzer: Yes
• Multilingual support: Yes
• Snapshot: Yes
• Management protocols: SNMP v2/3
• Web-based management: Yes
• Access Control List (ACL): Yes
• Browser supported: Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari
• Built-in FTP server: Yes
• Hot spare: Yes
• On/off switch: Yes
• Reset button: Yes
• S.M.A.R.T. support: Yes
• Security algorithms: 256-bit AES/FIPS 140-2/HTTPS/SNMPv2/SNMPv3
• System log: Yes
• Operating system installed: QNAP Turbo System
• Operating system version: 5.0.0
• Windows operating systems supported: Windows 10/Windows 11/Windows 7/Windows 8
• Linux operating systems supported: Yes
• Mac operating systems supported: Yes
• Server operating systems supported: Windows Server 2008 R2/Windows Server 2012/Windows Server 2012 R2/Windows Server 2016/Windows Server 2019
• Other operating systems supported: Android/iOS
• Power supply location: Built-in
• Power supply unit (PSU) capacity: 300
• Number of power supply units: 2
• Redundant power supply (RPS) support: Yes
• Power consumption (typical): 55.83
• Power consumption (sleep): 31.742
• AC input voltage: 100 - 240
• Fan voltage: 12
• Width: 482.2
• Depth: 297.4
• Height: 88.7
• Weight: 7900
• Package width: 614
• Package depth: 550
• Package height: 242
• Package weight: 10470
• Cables included: AC/LAN (RJ-45)
• Power cables quantity: 1
• Rack mount kit: Yes
• Number of screws: 56
• Package type: Box
• Operating temperature (T-T): 0 - 40
• Operating relative humidity (H-H): 5 - 95
• Storage relative humidity (H-H): 5 - 95
• Storage temperature (T-T): -20 - 70
• Harmonized System (HS) code: 84714100
• Warranty period: 3
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.07062
• Unit Calculated Weight: 10.75
