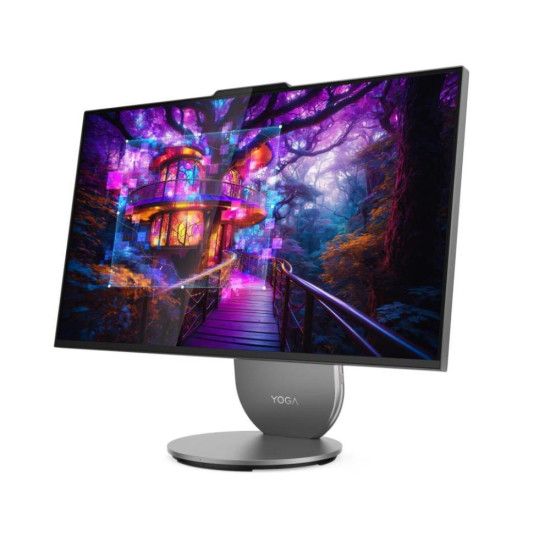

Yoga AIO

Technical Specifications

• Summary: Lenovo Yoga AIO 27IAH10. Product type: All-in-One PC. Display diagonal: 68.6 cm (27"), HD type: Quad HD, Display resolution: 2560 x 1440 pixels, Panel type: IPS. Processor family: Intel Core Ultra 9. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. Discrete graphics card model: NVIDIA GeForce RTX 4050, On-board graphics card model: Intel Arc 140T. Built-in camera. Product colour: Grey
• Vendor Homepage: https://www.lenovo.com/
• Name: PC AIO-27IAH10 CU9-285H 27"/32GB/1TB F0J2004MRI LENOVO
• Category Code: MNB
• Desktop Computer Family name: Yoga AIO
• Display diagonal: 27
• Display resolution: 2560 x 1440
• Touchscreen: No
• HD type: Quad HD
• Native aspect ratio: 16:9
• Display brightness: 400
• Panel type: IPS
• Anti-glare screen: Yes
• RGB colour space: sRGB
• Colour gamut: 99
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 9
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 285H
• Processor cores: 16
• Processor threads: 16
• Processor boost frequency: 5.4
• Performance cores: 6
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 5.4
• Efficient-core Max Turbo Frequency: 4.5
• Low Power Efficient-core Max Turbo Frequency: 2.5
• Performance-core base frequency: 2.9
• Efficient-core base frequency: 2.7
• Low Power Efficient-core Base Frequency: 1000
• Processor cache: 24
• Maximum turbo power: 115
• Processor base power: 45
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 99
• NPU performance up to: 13
• GPU performance up to: 77
• Internal memory: 32
• Internal memory type: LPDDR5x-SDRAM
• Maximum internal memory: 32
• Memory clock speed: 7467
• Memory form factor: On-board
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Optical drive type: No
• Card reader integrated: No
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 4050
• Discrete graphics card memory: 6
• Discrete graphics memory type: GDDR6
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc 140T
• Built-in speaker(s): Yes
• Built-in microphone: Yes
• Built-in camera: Yes
• Total megapixels: 5
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Bluetooth: Yes
• Bluetooth version: 5.4
• Ethernet LAN (RJ-45) ports: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
• HDMI ports quantity: 2
• Combo headphone/mic port: Yes
• Colour name: Luna Grey
• Product colour: Grey
• Product type: All-in-One PC
• Motherboard chipset: Intel SoC
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Operating system installed: No
• AC adapter power: 230
• Width (with stand): 613.6
• Depth (with stand): 235
• Height (with stand): 565.5
• Weight (with stand): 9400
• Mouse connectivity: Wireless
• Mouse included: Yes
• Keyboard connectivity: Wireless
• Keyboard included: Yes
• Keyboard language: English
• Product model code: 27IAH10
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.136752
• Unit Calculated Weight: 14
