ExpertCenter

Technical Specifications

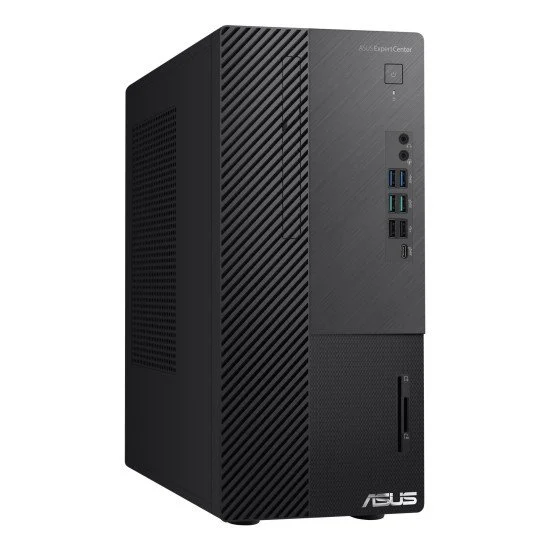

• Summary: ASUS ExpertCenter D7 Mini Tower D700ME-713700580X. Processor family: Intel Core i7, Processor model: i7-13700. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel UHD Graphics 770. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 330 W. Chassis type: Mini Tower. Product type: PC. Weight: 5.5 kg. Product colour: Black
• Vendor Homepage: https://www.asus.com/displays-desktops/tower-pcs/expertcenter/expertcenter-d7-mini-tower-d700me/
• Name: PC D700ME CI7-13700 16GB/1TB/W11P D700ME-713700580X ASUS
• Category Code: DT
• Desktop Computer Family name: ExpertCenter
• Chassis type: Mini Tower
• Volume: 15
• Placement supported: Vertical
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Product colour: Black
• Introduction year: 2024
• Processor manufacturer: Intel
• Processor family: Intel Core i7
• Processor generation: 13th gen Intel Core i7
• Processor model: i7-13700
• Processor cores: 16
• Processor threads: 24
• Processor boost frequency: 5.2
• Performance cores: 8
• Efficient cores: 8
• Performance-core Max Turbo Frequency: 5.1
• Efficient-core Max Turbo Frequency: 4.1
• Performance-core base frequency: 2.1
• Efficient-core base frequency: 1.5
• Processor cache: 30
• Processor cache type: Smart Cache
• Maximum turbo power: 219
• Processor base power: 65
• Internal memory: 16
• Maximum internal memory: 128
• Internal memory type: DDR5-SDRAM
• Memory slots: 4x DIMM
• Storage media: SSD
• Total storage capacity: 1000
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• M.2 SSD size: 2280 (22 x 80 mm)
• Card reader integrated: Yes
• Compatible memory cards: MMC/SD
• On-board graphics card: Yes
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel UHD Graphics
• On-board graphics card model: Intel UHD Graphics 770
• Graphics card DisplayPorts quantity: 3
• Graphics card HDMI ports quantity: 1
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000
• Cabling technology: 10/100/1000Base-T(X)
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.2
• USB 2.0 ports quantity: 6
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• VGA (D-Sub) ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 1.4
• DisplayPorts quantity: 2
• DisplayPort version: 1.2
• PS/2 ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• Headphone outputs: 1
• Line-out: Yes
• Line-in: Yes
• Combo headphone/mic port: Yes
• SmartCard slot: Yes
• Number of SATA III connectors: 4
• PCI Express x1 (Gen 3.x) slots: 2
• PCI Express x16 (Gen 4.x) slots: 1
• Market positioning: Business
• Motherboard chipset: Intel B760
• Audio system: High Definition Audio
• Audio output channels: 7.1
• Product type: PC
• Trusted Platform Module (TPM): Yes
• Operating system architecture: 64-bit
• Operating system installed: Windows 11 Pro
• Power supply: 330
• 80 PLUS certification: 80 PLUS Platinum
• Compliance certificates: REACH
• Sustainability certificates: ENERGY STAR/EPEAT Silver
• Width: 162
• Depth: 291.3
• Height: 355
• Weight: 5500
• KB language: ENG
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.055
• Unit Calculated Weight: 7.4
