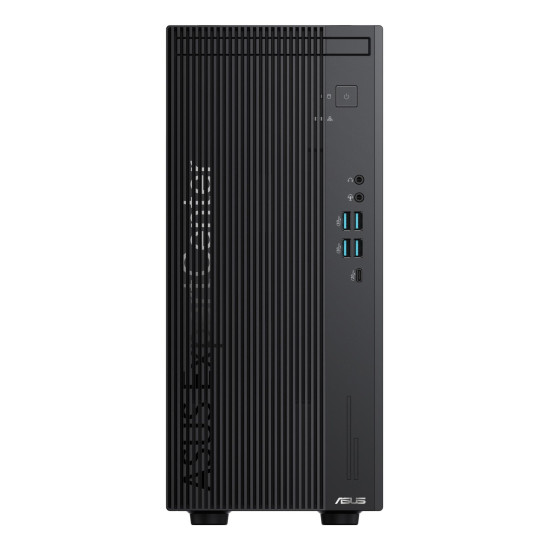

ExpertCenter

Technical Specifications

• Summary: ASUS ExpertCenter D9 Mini Tower D901MDR-5144000060. Processor family: Intel Core i5, Processor model: i5-14400. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 730. Power supply: 180 W. Chassis type: Mini Tower. Product type: PC. Weight: 6 kg. Product colour: Black
• Vendor Homepage: https://www.asus.com/displays-desktops/tower-pcs/expertcenter/expertcenter-d9-mini-tower-d901mdr/
• Name: PC D901MDR CI5-14400 16/512GB/D901MDR-5144000060 ASUS
• Category Code: DT
• Model: D901MDR-5144000060
• Desktop Computer Family name: ExpertCenter
• Chassis type: Mini Tower
• Colour name: Black
• Volume: 15
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Product colour: Black
• Processor manufacturer: Intel
• Processor family: Intel Core i5
• Processor generation: Intel Core i5 (14th gen)
• Processor model: i5-14400
• Processor cores: 10
• Processor threads: 16
• Processor boost frequency: 4.7
• Performance cores: 6
• Efficient cores: 4
• Performance-core Max Turbo Frequency: 4.7
• Efficient-core Max Turbo Frequency: 3.5
• Performance-core base frequency: 2.5
• Efficient-core base frequency: 1.8
• Processor cache: 20
• Processor cache type: Smart Cache
• Maximum turbo power: 148
• Processor base power: 65
• Internal memory: 16
• Maximum internal memory: 128
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 1 x 16
• Storage media: SSD
• Total storage capacity: 512
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• M.2 SSD size: 2280 (22 x 80 mm)
• On-board graphics card: Yes
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel UHD Graphics
• On-board graphics card model: Intel UHD Graphics 730
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000
• Cabling technology: 10/100/1000Base-T(X)
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
• USB 3.2 Gen 2x2 Type-C ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 1.4
• DisplayPorts quantity: 2
• DisplayPort version: 1.4
• Ethernet LAN (RJ-45) ports: 1
• Headphone outputs: 1
• Line-out: Yes
• Line-in: Yes
• Combo headphone/mic port: Yes
• Serial ports quantity: 1
• Number of front audio ports: 2
• Number of front USB ports: 5
• Number of rear USB ports: 6
• Number of rear audio ports: 3
• Number of SATA III connectors: 4
• PCI Express x1 (Gen 3.x) slots: 2
• PCI Express x16 (Gen 3.x) slots: 1
• PCI Express x16 (Gen 4.x) slots: 1
• Market positioning: Business
• Motherboard chipset: Intel Q670
• Audio system: High Definition Audio
• Audio output channels: 7.1
• Password protection: Yes
• Password protection type: BIOS/HDD/User
• Product type: PC
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Power supply: 180
• 80 PLUS certification: 80 PLUS Bronze
• Compliance certificates: REACH
• Sustainability certificates: ENERGY STAR/EPEAT Gold
• Width: 155
• Depth: 296
• Height: 347
• Weight: 6000
• KB language: ENG
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.05998
• Unit Calculated Weight: 6
