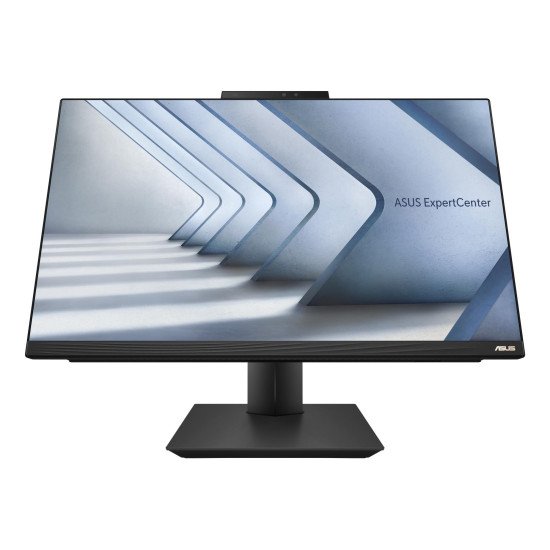

ExpertCenter E5702WVART-BPF0090

Technical Specifications

• Summary: ASUS E5702WVART-BPF0090. Product type: All-in-One PC. Display diagonal: 68.6 cm (27"), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Touchscreen. Processor family: Intel Core 5. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Graphics. Built-in camera. Product colour: Black
• Vendor Homepage: https://www.asus.com/displays-desktops/all-in-one-pcs/everyday-use/asus-aio-a5-a5702/
• Name: PC E5702WVART C5-120U 27"/8/512 E5702WVART-BPF0090 ASUS
• Category Code: MNB
• Model: E5702WVART-BPF0090
• Desktop Computer Family name: ExpertCenter
• Display diagonal: 27
• Display resolution: 1920 x 1080
• Touchscreen: Yes
• Full HD: Yes
• HD type: Full HD
• LED backlight: Yes
• Native aspect ratio: 16:9
• Display brightness: 250
• Anti-glare screen: Yes
• RGB colour space: sRGB
• Colour gamut: 100
• Processor manufacturer: Intel
• Processor family: Intel Core 5
• Processor generation: Intel Core (Series 1)
• Processor model: 120U
• Processor cores: 10
• Processor threads: 12
• Processor boost frequency: 5
• Performance cores: 2
• Efficient cores: 8
• Performance-core Max Turbo Frequency: 5
• Efficient-core Max Turbo Frequency: 3.8
• Performance-core base frequency: 1.4
• Efficient-core base frequency: 0.9
• Processor cache: 12
• Processor cache type: Smart Cache
• Maximum turbo power: 55
• Processor base power: 15
• Internal memory: 8
• Internal memory type: DDR4-SDRAM
• Maximum internal memory: 64
• Memory slots: 2
• Memory slots type: SO-DIMM
• Memory form factor: DIMM/SO-DIMM
• Total storage capacity: 512
• Storage media: SSD
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: MMC/SD
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Built-in speaker(s): Yes
• Built-in microphone: Yes
• Built-in camera: Yes
• Camera HD type: Full HD
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000
• Bluetooth: Yes
• Bluetooth version: 5.4
• Ethernet LAN (RJ-45) ports: 1
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Intel Thunderbolt 4: Yes
• Thunderbolt 4 ports quantity: 1
• HDMI ports quantity: 2
• Combo headphone/mic port: Yes
• DC-in jack: Yes
• Product colour: Black
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Product type: All-in-One PC
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• BIOS password: Yes
• HDD user password: Yes
• AC adapter power: 120
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output voltage: 20
• Width (with stand): 613
• Depth (with stand): 213
• Height (with stand): 467
• Weight (with stand): 9800
• Product model code: E5702WVART-BPF0090
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.105846
• Unit Calculated Weight: 5
