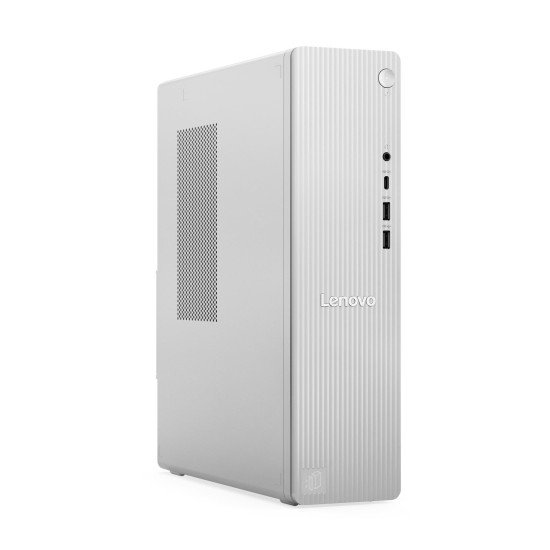

IdeaCentre Tower 08IAS10

Technical Specifications

• Summary: Lenovo IdeaCentre Tower 08IAS10. Processor family: Intel Core Ultra 5, Processor model: 225. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB. On-board graphics card model: Intel® Graphics. Wi-Fi. Power supply: 200 W. Chassis type: SFF. Product type: PC. Weight: 4.52 kg. Product colour: Grey
• Vendor Homepage: https://www.lenovo.com/gb/en/p/desktops/ideacentre/500-series/lenovo-ideacentre-tower-gen-10-intel-desktop/len102d0049?orgRef=https%253A%252F%252Fwww.google.com%252F&srsltid=AfmBOoqN42ja8S35Wv5PHfGxhXKt8lG6zroS8bLgvZqEmIEsyvPEWREH
• Name: PC ICTOWER-08IAS10 CU5-225/16GB/1TB 91CF001QRM LENOVO
• Category Code: DT
• Model: Tower 08IAS10
• Desktop Computer Family name: IdeaCentre
• Chassis type: SFF
• Volume: 8.2
• Product colour: Grey
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 5
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 225
• Processor cores: 10
• Processor threads: 10
• Processor boost frequency: 4.9
• Performance cores: 6
• Efficient cores: 4
• Performance-core Max Turbo Frequency: 4.9
• Efficient-core Max Turbo Frequency: 4.4
• Performance-core base frequency: 3.3
• Efficient-core base frequency: 2.7
• Processor cache: 20
• Processor cache type: Smart Cache
• Number of processors installed: 1
• Maximum turbo power: 121
• Processor base power: 65
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 23
• NPU performance up to: 13
• GPU performance up to: 4
• Internal memory: 16
• Maximum internal memory: 32
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 1 x 16
• Memory slots: 2x DIMM
• Memory clock speed: 5600
• Memory channels: Single-channel
• Non-ECC: Yes
• Total storage capacity: 1000
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• M.2 SSD size: 2280 (22 x 80 mm)
• On-board graphics card: Yes
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.3
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Ethernet LAN (RJ-45) ports: 1
• Headphone outputs: 1
• Combo headphone/mic port: Yes
• Motherboard chipset: Intel B860
• Password protection: Yes
• Password protection type: BIOS/HDD
• Product type: PC
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Power supply: 200
• Power supply input voltage: 100 - 240
• Power supply input frequency: 50/60
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): -40 - 60
• Operating relative humidity (H-H): 20 - 80
• Storage relative humidity (H-H): 10 - 90
• Operating altitude: 0 - 3048
• Non-operating altitude: 0 - 12192
• Compliance certificates: RoHS
• Certification: ErP Lot 3
• Width: 89
• Depth: 291.4
• Height: 339.5
• Weight: 4520
• Package width: 195
• Package depth: 395
• Package height: 530
• Package weight: 5500
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0424
• Unit Calculated Weight: 4
