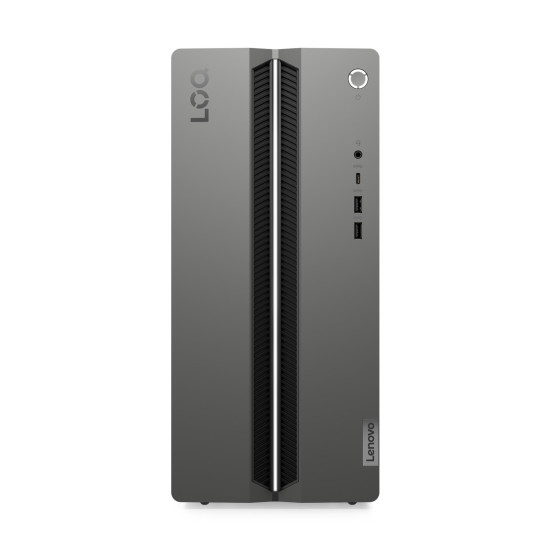

LOQ Tower 17IRR9

Technical Specifications

• Summary: Lenovo LOQ Tower 17IRR9. Processor family: Intel Core i7, Processor model: i7-14700. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770, Discrete graphics card model: NVIDIA GeForce RTX 5060. Wi-Fi. Power supply: 500 W. Chassis type: Tower. Product type: PC. Weight: 8 kg. Product colour: Black
• Vendor Homepage: https://www.lenovo.com/
• Name: PC LOQ-17IRR9 CI7-14700 16GB/512GB 90X000F5RI LENOVO
• Category Code: DT
• Model: Tower 17IRR9
• Desktop Computer Family name: LOQ
• Chassis type: Tower
• Colour name: Luna Grey (Front Bezel), Raven Black (Chassis)
• Volume: 17
• Product colour: Black
• Processor manufacturer: Intel
• Processor family: Intel Core i7
• Processor generation: Intel Core i7 (14th gen)
• Processor model: i7-14700
• Processor cores: 20
• Processor threads: 28
• Processor boost frequency: 5.4
• Performance cores: 8
• Efficient cores: 12
• Performance-core Max Turbo Frequency: 5.3
• Efficient-core Max Turbo Frequency: 4.2
• Performance-core base frequency: 2.1
• Efficient-core base frequency: 1.5
• Processor cache: 33
• Processor cache type: Smart Cache
• Maximum turbo power: 219
• Processor base power: 65
• Internal memory: 16
• Maximum internal memory: 32
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 1 x 16
• Memory slots: 2x DIMM
• Memory clock speed: 5600
• Storage media: SSD
• Total storage capacity: 512
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• On-board graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5060
• Discrete graphics card memory: 8
• Discrete graphics memory type: GDDR7
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel UHD Graphics
• On-board graphics card model: Intel UHD Graphics 770
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.3
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
• VGA (D-Sub) ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Ethernet LAN (RJ-45) ports: 1
• Headphone outputs: 1
• Combo headphone/mic port: Yes
• Motherboard chipset: Intel B760
• Audio chip: Realtek ALC623-CG
• Audio system: High Definition Audio
• Product type: PC
• Trusted Platform Module (TPM): Yes
• Power supply: 500
• Certification: RoHS
• Width: 170
• Depth: 279
• Height: 376
• Weight: 8000
• Mouse connectivity: Wired
• Mouse included: Yes
• Keyboard connectivity: Wired
• Keyboard included: Yes
• KB language: ENG
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.05724
• Unit Calculated Weight: 10
