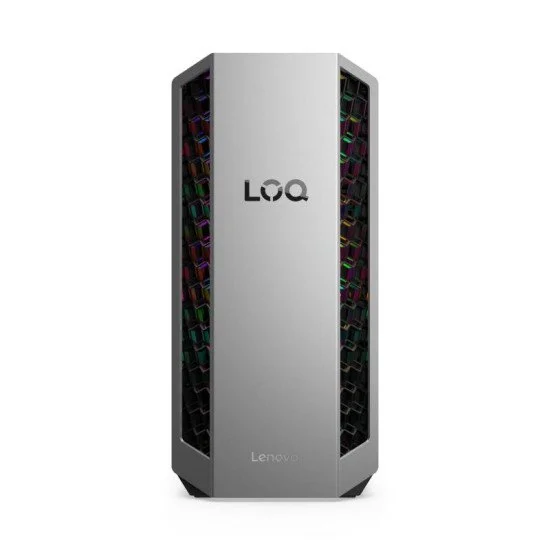

PC LOQ-26ADR10 R7-8745HX 32GB/1TB 91DF005URM LENOVO

Technical Specifications

• Summary: Lenovo LOQ Tower 26ADR10. Processor frequency: 3.6 GHz, Processor family: AMD Ryzen™ 7, Processor model: 8745HX. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5200 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 610M, Discrete graphics card model: NVIDIA GeForce RTX 5060 Ti. Power supply: 500 W. Chassis type: Tower. Product type: PC. Weight: 10.5 kg. Product colour: Black
• Vendor Homepage: https://www.lenovo.com/gb/en/p/desktops/loq-desktops/lenovo-loq-tower-26adr10/len102q0004?orgRef=https%253A%252F%252Fwww.google.com%252F&srsltid=AfmBOopZ5bg5vN8Sui8z72kRZu2pqFfwLhFTiXexPBGjFiW26N14di9W
• Name: PC LOQ-26ADR10 R7-8745HX 32GB/1TB 91DF005URM LENOVO
• Category Code: DT
• Chassis type: Tower
• Colour name: Luna Grey (Front Bezel), Eclipse Black (Chassis)
• Volume: 26
• Placement supported: Vertical
• Number of 3.5" bays: 2
• Product colour: Black
• Processor manufacturer: AMD
• Processor family: AMD Ryzen 7
• Processor model: 8745HX
• Processor cores: 8
• Processor threads: 16
• Processor boost frequency: 5.1
• Processor frequency: 3.6
• Processor cache: 32
• Processor cache type: L3
• Number of processors installed: 1
• Internal memory: 32
• Maximum internal memory: 64
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 2 x 16
• Memory slots: 2x SO-DIMM
• Memory clock speed: 5200
• Memory channels: Dual-channel
• Non-ECC: Yes
• Storage media: SSD
• Total storage capacity: 1000
• Number of storage drives installed: 1
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• M.2 SSD size: 2280 (22 x 80 mm)
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• On-board graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5060 Ti
• Discrete graphics card memory: 8
• Discrete graphics memory type: GDDR7
• Number of discrete graphics cards: 1
• On-board GPU manufacturer: AMD
• On-board graphics card family: AMD Radeon
• On-board graphics card model: AMD Radeon 610M
• Graphics card DisplayPorts quantity: 3
• Graphics card HDMI ports quantity: 1
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Ethernet LAN (RJ-45) ports: 1
• Headphone outputs: 1
• Combo headphone/mic port: Yes
• Motherboard chipset: AMD SoC
• Audio chip: Realtek ALC623-CG
• Audio system: High Definition Audio
• Password protection: Yes
• Product type: PC
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Power supply: 500
• Power supply input voltage: 100 - 240
• Power supply input frequency: 50/60
• Operating temperature (T-T): 10 - 35
• Storage temperature (T-T): -40 - 60
• Operating relative humidity (H-H): 20 - 80
• Storage relative humidity (H-H): 10 - 90
• Operating altitude: 0 - 3048
• Non-operating altitude: 0 - 12192
• Certification: ENERGY STAR,RoHS
• Width: 205
• Depth: 404.5
• Height: 437.1
• Weight: 10500
• Package width: 560
• Package depth: 330
• Package height: 548
• Package weight: 13200
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.09677
• Unit Calculated Weight: 10
