Legion

Technical Specifications

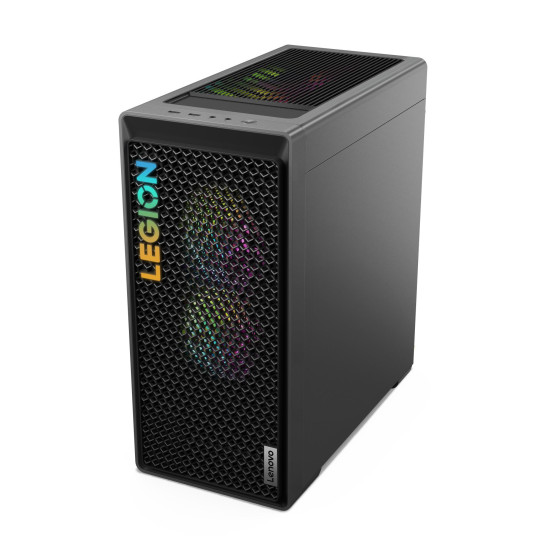

• Summary: Lenovo Legion T5 26IRB8. Processor family: Intel Core i7, Processor model: i7-14700KF. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD. Discrete graphics card model: NVIDIA GeForce RTX 4070 SUPER. Wi-Fi. Power supply: 500 W. Chassis type: Tower. Product type: PC. Weight: 14 kg. Product colour: Grey
• Vendor Homepage: https://www.lenovo.com/gb/en/p/desktops/legion-desktops/legion-t-series-towers/-legion-tower-5i-gen-8-26l,-intel/len102g0006
• Name: PC LT5-26IRB8 CI7-14700KF 32GB/1TB 90UU00NJRM LENOVO
• Category Code: DT
• Desktop Computer Family name: Legion
• Chassis type: Tower
• Colour name: Storm Grey
• Volume: 26
• Product colour: Grey
• Processor manufacturer: Intel
• Processor family: Intel Core i7
• Processor generation: Intel Core i7 (14th gen)
• Processor model: i7-14700KF
• Processor cores: 20
• Processor threads: 28
• Processor boost frequency: 5.6
• Performance cores: 8
• Efficient cores: 12
• Performance-core Max Turbo Frequency: 5.5
• Efficient-core Max Turbo Frequency: 4.3
• Performance-core base frequency: 3.4
• Efficient-core base frequency: 2.5
• Processor cache: 33
• Processor cache type: Smart Cache
• Maximum turbo power: 253
• Processor base power: 125
• Internal memory: 32
• Maximum internal memory: 64
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 2 x 16
• Memory slots: 4x DIMM
• Memory clock speed: 5600
• Memory channels: Dual-channel
• Non-ECC: Yes
• Storage media: SSD
• Total storage capacity: 1000
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• M.2 SSD size: 2280 (22 x 80 mm)
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 4070 SUPER
• Discrete graphics card memory: 12
• Discrete graphics memory type: GDDR6X
• On-board GPU manufacturer: Intel
• Graphics card DisplayPorts quantity: 3
• Graphics card HDMI ports quantity: 1
• Ethernet LAN: Yes
• Ethernet LAN data rates: 2500
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.3
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Headphone outputs: 1
• Motherboard chipset: Intel B660
• Audio chip: Realtek ALC897-Q
• Audio system: High Definition Audio
• Product type: PC
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Power supply: 500
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): -40 - 60
• Operating relative humidity (H-H): 20 - 80
• Storage relative humidity (H-H): 10 - 90
• Operating altitude: -15.2 - 3048
• Non-operating altitude: -15.2 - 12192
• Certification: ErP Lot 3 RoHS compliant
• Width: 205
• Depth: 396.9
• Height: 425.9
• Weight: 14000
• KB language: ENG
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.088102
• Unit Calculated Weight: 14.5
