IdeaCentre

Technical Specifications

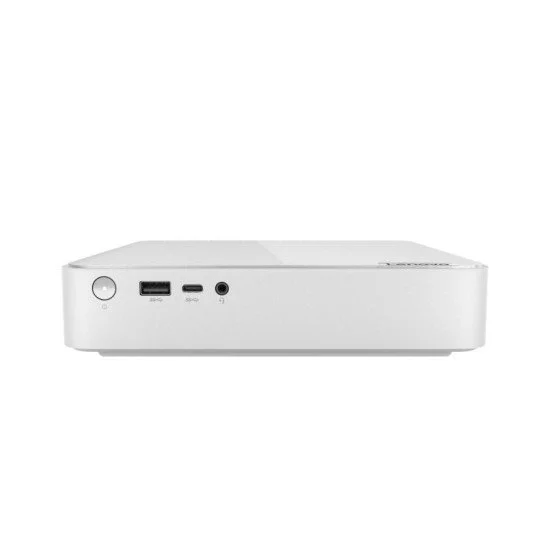

• Summary: Lenovo IdeaCentre Mini 01IRH8. Processor family: Intel Core i5, Processor model: i5-13420H. Internal memory: 32 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 3200 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics. Wi-Fi. Power supply: 150 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.8 kg. Product colour: Grey
• Vendor Homepage: https://www.lenovo.com/
• Name: PC MINI-01IRH8 CI5-13420H 32GB/1TB 90W2006NRM LENOVO
• Category Code: DT
• Desktop Computer Family name: IdeaCentre
• Chassis type: Mini PC
• Colour name: Cloud Grey
• Volume: 1
• Product colour: Grey
• Processor manufacturer: Intel
• Processor family: Intel Core i5
• Processor generation: 13th gen Intel Core i5
• Processor model: i5-13420H
• Processor cores: 8
• Processor threads: 12
• Processor boost frequency: 4.6
• Performance cores: 4
• Efficient cores: 4
• Performance-core Max Turbo Frequency: 4.6
• Efficient-core Max Turbo Frequency: 3.4
• Processor cache: 12
• Processor cache type: Smart Cache
• Maximum turbo power: 115
• Processor base power: 45
• Internal memory: 32
• Maximum internal memory: 32
• Internal memory type: DDR4-SDRAM
• Memory layout (slots x size): 2 x 16
• Memory slots: 2x SO-DIMM
• Memory clock speed: 3200
• Storage media: SSD
• Total storage capacity: 1000
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• On-board graphics card: Yes
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel UHD Graphics
• On-board graphics card model: Intel UHD Graphics
• Ethernet LAN: Yes
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.2
• USB 2.0 ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Intel Thunderbolt 4: Yes
• Thunderbolt 4 ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• Combo headphone/mic port: Yes
• Motherboard chipset: Intel SoC
• Audio chip: Realtek ALC256
• Audio system: High Definition Audio
• Product type: Mini PC
• Trusted Platform Module (TPM): Yes
• Power supply: 150
• Width: 191.4
• Depth: 195
• Height: 39
• Weight: 1800
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.009207
• Unit Calculated Weight: 3
