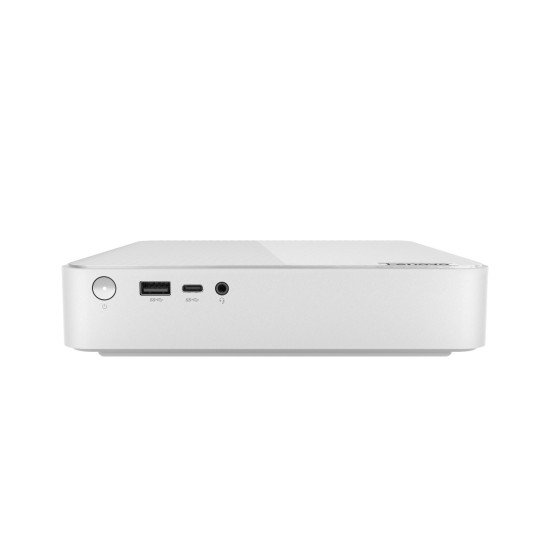

IdeaCentre Mini 01IRH8

Technical Specifications

• Summary: Lenovo IdeaCentre Mini 01IRH8. Processor family: Intel Core i5, Processor model: i5-13420H. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 3200 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics. Wi-Fi. Power supply: 150 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.8 kg. Product colour: Grey
• Vendor Homepage: https://www.lenovo.com/
• Name: PC MINI-01IRH8 CI5-13420H/16/512GB 90W20089RM LENOVO
• Category Code: DT
• Desktop Computer Family name: IdeaCentre
• Chassis type: Mini PC
• Colour name: Cloud Grey
• Volume: 1
• Product colour: Grey
• Processor manufacturer: Intel
• Processor family: Intel Core i5
• Processor generation: 13th gen Intel Core i5
• Processor model: i5-13420H
• Processor cores: 8
• Processor threads: 12
• Processor boost frequency: 4.6
• Performance cores: 4
• Efficient cores: 4
• Performance-core Max Turbo Frequency: 4.6
• Efficient-core Max Turbo Frequency: 3.4
• Processor cache: 12
• Processor cache type: Smart Cache
• Maximum turbo power: 115
• Processor base power: 45
• Internal memory: 16
• Maximum internal memory: 32
• Internal memory type: DDR4-SDRAM
• Memory layout (slots x size): 1 x 16
• Memory slots: 2x SO-DIMM
• Memory clock speed: 3200
• Memory channels: Dual-channel
• Non-ECC: Yes
• Storage media: SSD
• Total storage capacity: 512
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• M.2 SSD size: 2280 (22 x 80 mm)
• On-board graphics card: Yes
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel UHD Graphics
• On-board graphics card model: Intel UHD Graphics
• Ethernet LAN: Yes
• Ethernet LAN data rates: 2500
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.2
• USB 2.0 ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Intel Thunderbolt 4: Yes
• Thunderbolt 4 ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• Ethernet LAN (RJ-45) ports: 1
• Combo headphone/mic port: Yes
• Motherboard chipset: Intel SoC
• Audio system: High Definition Audio
• Product type: Mini PC
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Power supply: 150
• Power supply input voltage: 100 - 240
• Power supply input frequency: 50/60
• Operating temperature (T-T): 10 - 35
• Storage temperature (T-T): -40 - 60
• Operating relative humidity (H-H): 20 - 80
• Storage relative humidity (H-H): 20 - 90
• Operating altitude: -15.2 - 3048
• Non-operating altitude: -15.2 - 12192
• Certification: ENERGY STAR 8.0 ErP Lot 3 RoHS compliant
• Width: 191.4
• Depth: 195
• Height: 39
• Weight: 1800
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.009504
• Unit Calculated Weight: 3
