ThinkCentre

Technical Specifications

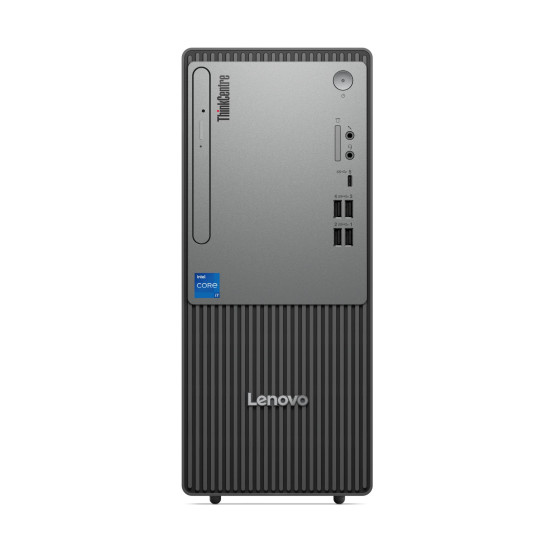

• Summary: Lenovo ThinkCentre neo 50t Gen 5. Processor family: Intel Core i5, Processor model: i5-14400. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 4800 MHz. Total storage capacity: 512 GB, Storage media: SSD, Card reader integrated, Optical drive type: DVD±RW. On-board graphics card model: Intel UHD Graphics 730. Power supply: 180 W. Chassis type: Tower. Product type: PC. Weight: 5.6 kg. Product colour: Black, Grey
• Vendor Homepage: https://www.lenovo.com/gb/en/p/desktops/thinkcentre/thinkcentre-neo-series/lenovo-thinkcentre-neo-50t-gen-5-intel-tower/len102c0056
• Name: PC NEO 50T G5 CI5-14400 16GB/512GB 12UD003MRI LENOVO
• Category Code: DT
• Desktop Computer Family name: ThinkCentre
• Chassis type: Tower
• Colour name: Luna grey (front bezel), raven black (chassis)
• Volume: 13.6
• Placement supported: Vertical
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Product colour: Black,Grey
• Processor manufacturer: Intel
• Processor family: Intel Core i5
• Processor generation: Intel Core i5 (14th gen)
• Processor model: i5-14400
• Processor cores: 10
• Processor threads: 16
• Processor boost frequency: 4.7
• Performance cores: 6
• Efficient cores: 4
• Performance-core Max Turbo Frequency: 4.7
• Efficient-core Max Turbo Frequency: 3.5
• Performance-core base frequency: 2.5
• Efficient-core base frequency: 1.8
• Processor cache: 20
• Processor cache type: Smart Cache
• Number of processors installed: 1
• Maximum turbo power: 148
• Processor base power: 65
• Internal memory: 16
• Maximum internal memory: 64
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 1 x 16
• Memory slots: 2x DIMM
• Memory clock speed: 4800
• Memory channels: Dual-channel
• Non-ECC: Yes
• Storage media: SSD
• Total storage capacity: 512
• Optical drive type: DVD±RW
• Number of storage drives installed: 1
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD/SDHC/SDXC
• On-board graphics card: Yes
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel UHD Graphics
• On-board graphics card model: Intel UHD Graphics 730
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Cabling technology: 10/100/1000Base-T(X)
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 6 AX201
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.2
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
• VGA (D-Sub) ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Line-out: Yes
• Combo headphone/mic port: Yes
• Motherboard chipset: Intel B760
• Audio chip: Realtek ALC623-CG
• Audio system: High Definition Audio
• Built-in speaker(s): Yes
• Number of speakers: 1
• Password protection: Yes
• Password protection type: HDD/Power on/Supervisor
• Product type: PC
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Power supply: 180
• Power supply input voltage: 100 - 240
• Power supply input frequency: 50/60
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): -40 - 60
• Operating relative humidity (H-H): 20 - 80
• Storage relative humidity (H-H): 10 - 90
• Operating altitude: 0 - 3048
• Non-operating altitude: 0 - 12192
• Compliance certificates: REACH/RoHS/WEEE
• Certification: TÃœV Rheinland Ultra Low Noise
• Sustainability certificates: ENERGY STAR/EPEAT Silver/TCO
• Width: 145
• Depth: 294
• Height: 340
• Weight: 5600
• Package width: 240
• Package depth: 395
• Package height: 530
• Package weight: 7000
• Mouse connectivity: Wired
• Mouse included: Yes
• Keyboard connectivity: Wired
• Keyboard included: Yes
• KB language: ENG
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.048672
• Unit Calculated Weight: 4
