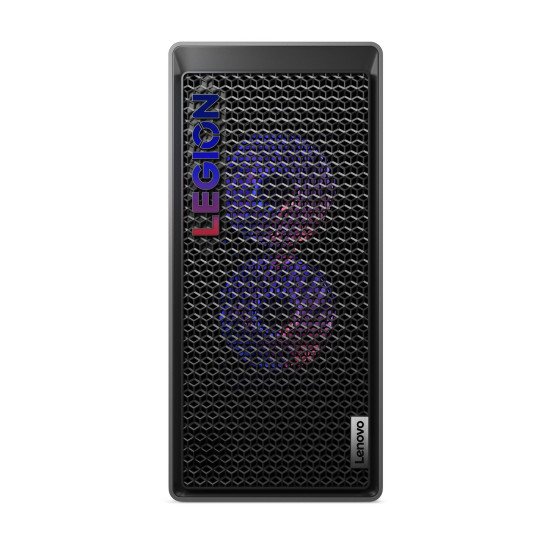

Legion T5 26IRX9

Technical Specifications

• Summary: Lenovo Legion T5 26IRX9. Processor family: Intel Core i7, Processor model: i7-13650HX. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics, Discrete graphics card model: NVIDIA GeForce RTX 4060. Wi-Fi. Power supply: 500 W. Chassis type: Tower. Product type: PC. Weight: 14 kg. Product colour: Grey
• Vendor Homepage: https://www.lenovo.com/gb/en/p/desktops/legion-desktops/legion-t-series-towers/legion-tower-5i-gen-9-26l-intel/len102g0008#features
• Name: PC T5-26IRX9 CI7-13650HX 16GB/1TB 90XE0038RM LENOVO
• Category Code: DT
• Desktop Computer Family name: Legion
• Chassis type: Tower
• Colour name: Storm Grey
• Volume: 26
• Placement supported: Vertical
• Product colour: Grey
• Processor manufacturer: Intel
• Processor family: Intel Core i7
• Processor generation: 13th gen Intel Core i7
• Processor model: i7-13650HX
• Processor cores: 14
• Processor threads: 20
• Processor boost frequency: 4.9
• Performance cores: 6
• Efficient cores: 8
• Performance-core Max Turbo Frequency: 4.9
• Efficient-core Max Turbo Frequency: 3.6
• Processor cache: 24
• Processor cache type: Smart Cache
• Number of processors installed: 1
• Maximum turbo power: 157
• Processor base power: 55
• Internal memory: 16
• Maximum internal memory: 64
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 1 x 16
• Memory slots: 2x SO-DIMM
• Memory clock speed: 5600
• Memory channels: Dual-channel
• Storage media: SSD
• Total storage capacity: 1000
• Number of storage drives installed: 1
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• M.2 SSD size: 2280 (22 x 80 mm)
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• On-board graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 4060
• Discrete graphics card memory: 8
• Discrete graphics memory type: GDDR6
• Number of discrete graphics cards: 1
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel UHD Graphics
• On-board graphics card model: Intel UHD Graphics
• Graphics card DisplayPorts quantity: 3
• Graphics card HDMI ports quantity: 1
• Ethernet LAN: Yes
• Ethernet LAN data rates: 2500
• LAN controller: Dragon RTL8125BG
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.2
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Headphone outputs: 1
• Number of rear USB ports: 7
• Market positioning: Gaming
• Motherboard chipset: Intel HM770
• Audio chip: Realtek ALC897-Q
• Audio system: High Definition Audio
• Password protection: Yes
• Password protection type: Power on/Supervisor
• Product type: PC
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Power supply: 500
• Power supply input voltage: 100 - 240
• Power supply input frequency: 50/60
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): -40 - 60
• Operating relative humidity (H-H): 20 - 80
• Storage relative humidity (H-H): 10 - 90
• Operating altitude: 0 - 3048
• Non-operating altitude: 0 - 12192
• Certification: ENERGY STAR 8.0 ErP Lot 3 RoHS compliant
• Width: 205
• Depth: 396.9
• Height: 425.9
• Weight: 14000
• Mouse connectivity: Wired
• Mouse included: Yes
• Keyboard connectivity: Wired
• Keyboard included: Yes
• Warranty period: 2
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.08673
• Unit Calculated Weight: 7
