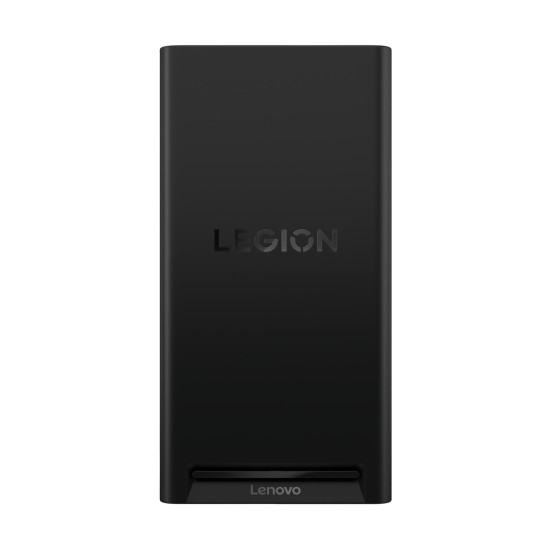

Legion

Technical Specifications

• Summary: Lenovo Legion T5 30AGB10. Processor frequency: 4.2 GHz, Processor family: AMD Ryzen™ 7, Processor model: 7800X3D. Internal memory: 24 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5070. Power supply: 850 W. Chassis type: Tower. Product type: PC. Weight: 15 kg. Product colour: Black
• Vendor Homepage: https://www.lenovo.com/gb/en/p/desktops/legion-desktops/legion-t-series-towers/lenovo-legion-tower-5-gen-10-30l-amd/len102g0011?orgRef=https%253A%252F%252Fwww.google.com%252F&srsltid=AfmBOoosuor5FP7WkFxnsC_2N1uqTQ599OrIvGv03lgMXR8aaJ8e5Z1E
• Name: PC T5-30AGB10 R7-7800X3D 48GB/1TB 90YJ007GRM LENOVO
• Category Code: DT
• Model: T5 30AGB10
• Desktop Computer Family name: Legion
• Chassis type: Tower
• Colour name: Eclipse Black
• Volume: 30
• Product colour: Black
• Viewing window: Yes
• Processor manufacturer: AMD
• Processor family: AMD Ryzen 7
• Processor generation: AMD Ryzen 7000 Series
• Processor model: 7800X3D
• Processor cores: 8
• Processor threads: 16
• Processor boost frequency: 5
• Processor frequency: 4.2
• Processor cache: 96
• Processor cache type: L3
• Processor base power: 120
• Internal memory: 24
• Maximum internal memory: 32
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 2 x 24
• Memory slots: 4x DIMM
• Memory clock speed: 5600
• Memory channels: Dual-channel
• Storage media: SSD
• Total storage capacity: 1000
• Number of storage drives installed: 1
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• M.2 SSD size: 2280 (22 x 80 mm)
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• On-board graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5070
• Discrete graphics card memory: 12
• Discrete graphics memory type: GDDR7
• Number of discrete graphics cards: 1
• On-board GPU manufacturer: AMD
• On-board graphics card family: AMD Radeon Graphics
• On-board graphics card model: AMD Radeon Graphics
• Ethernet LAN: Yes
• Ethernet LAN data rates: 2500
• LAN controller: Dragon RTL8125BG
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• Combo headphone/mic port: Yes
• PCI Express x4 (Gen 3.x) slots: 1
• PCI Express x16 (Gen 4.x) slots: 1
• Motherboard chipset: AMD B650
• Audio chip: Realtek ALC623
• Audio system: High Definition Audio
• Password protection: Yes
• Password protection type: HDD
• Product type: PC
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Power supply: 850
• Power supply input voltage: 100 - 240
• Power supply input frequency: 50/60
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): -40 - 60
• Operating relative humidity (H-H): 20 - 80
• Storage relative humidity (H-H): 10 - 90
• Operating altitude: 0 - 3048
• Non-operating altitude: 0 - 12192
• Sustainability certificates: ENERGY STAR
• Width: 211
• Depth: 490.4
• Height: 413.5
• Weight: 15000
• Package width: 321
• Package depth: 596
• Package height: 549
• Package weight: 17000
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.09969
• Unit Calculated Weight: 9
