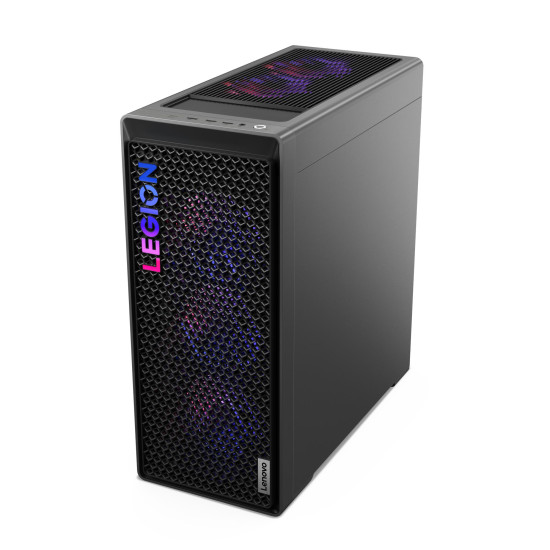

Legion T7 34IAS10

Technical Specifications

• Summary: Lenovo Legion T7 34IAS10. Processor family: Intel Core Ultra 9, Processor model: 285K. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5080. Wi-Fi. Power supply: 850 W. Chassis type: Tower. Product type: PC. Weight: 18 kg. Product colour: Black
• Vendor Homepage: https://www.lenovo.com/gb/en/p/desktops/legion-desktops/legion-t-series-towers/legion-tower-7i-gen-10/len102g0010
• Name: PC T7-34IAS10 CU9-285K 32GB/1TB 90Y6009TRM LENOVO
• Category Code: DT
• Model: T7 34IAS10
• Desktop Computer Family name: Legion
• Chassis type: Tower
• Colour name: Storm Grey
• Volume: 34
• Placement supported: Vertical
• Product colour: Black
• Viewing window: Yes
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 9
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 285K
• Processor cores: 24
• Processor threads: 24
• Processor boost frequency: 5.7
• Performance cores: 8
• Efficient cores: 16
• Performance-core Max Turbo Frequency: 5.5
• Efficient-core Max Turbo Frequency: 4.6
• Performance-core base frequency: 3.7
• Efficient-core base frequency: 3.2
• Processor cache: 36
• Processor cache type: Smart Cache
• Maximum turbo power: 250
• Processor base power: 125
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 36
• NPU performance up to: 13
• GPU performance up to: 8
• Internal memory: 32
• Maximum internal memory: 128
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 2 x 16
• Memory slots: 4x DIMM
• Memory clock speed: 5600
• Memory channels: Dual-channel
• Non-ECC: Yes
• Storage media: SSD
• Total storage capacity: 1000
• Number of storage drives installed: 1
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• M.2 SSD size: 2280 (22 x 80 mm)
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• On-board graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5080
• Discrete graphics card memory: 16
• Discrete graphics memory type: GDDR7
• Number of discrete graphics cards: 1
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Graphics card DisplayPorts quantity: 3
• Graphics card HDMI ports quantity: 1
• Ethernet LAN: Yes
• Ethernet LAN data rates: 2500
• LAN controller: Dragon RTL8125BG
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Intel Thunderbolt 4: Yes
• Thunderbolt 4 ports quantity: 1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Headphone outputs: 1
• Line-out: Yes
• Line-in: Yes
• Combo headphone/mic port: Yes
• Market positioning: Gaming
• Motherboard chipset: Intel Z890
• Audio chip: Realtek ALC1220
• Audio system: High Definition Audio
• Password protection: Yes
• Password protection type: BIOS/Power on/Supervisor
• Product type: PC
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Power supply: 850
• Power supply input voltage: 100 - 240
• Power supply input frequency: 50/60
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): -40 - 60
• Operating relative humidity (H-H): 20 - 80
• Storage relative humidity (H-H): 10 - 90
• Operating altitude: 0 - 3048
• Non-operating altitude: 0 - 12192
• Compliance certificates: RoHS
• Certification: ErP Lot 3
• Width: 211
• Depth: 446
• Height: 489.93
• Weight: 18000
• Package width: 325
• Package depth: 580
• Package height: 625
• Package weight: 19000
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.09969
• Unit Calculated Weight: 8
