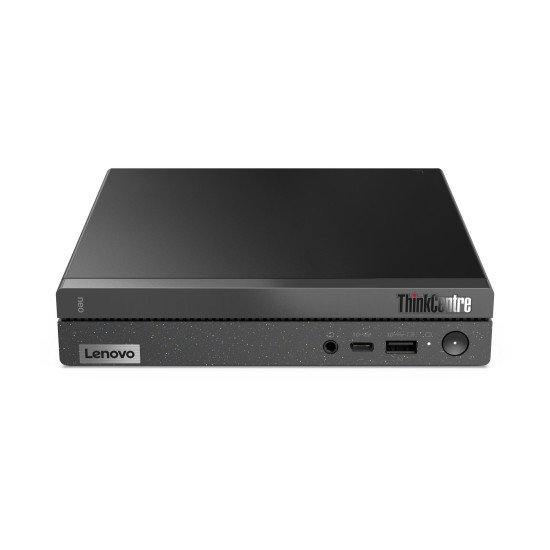

ThinkCentre neo 50q Gen 4

Technical Specifications

• Summary: Lenovo ThinkCentre neo 50q Gen 4. Processor family: Intel Core i5, Processor model: i5-13420H. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 3200 MHz. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 65 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.11 kg. Product colour: Black
• Vendor Homepage: https://www.lenovo.com/gb/en/p/desktops/thinkcentre/thinkcentre-neo-series/thinkcentre-neo-50q-gen-4-tiny-(intel)/len102c0033?orgRef=https%253A%252F%252Fwww.google.com%252F
• Name: PC TC NEO 50Q G4 CI5-13420H/16/256GB 11P 12LMS5QB00 LENOVO
• Category Code: DT
• Model: neo 50q Gen 4
• Desktop Computer Family name: ThinkCentre
• Chassis type: Mini PC
• Volume: 1
• Placement supported: Horizontal/Vertical
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Product colour: Black
• Processor manufacturer: Intel
• Processor family: Intel Core i5
• Processor generation: 13th gen Intel Core i5
• Processor model: i5-13420H
• Processor cores: 8
• Processor threads: 12
• Processor boost frequency: 4.6
• Performance cores: 4
• Efficient cores: 4
• Performance-core Max Turbo Frequency: 4.6
• Efficient-core Max Turbo Frequency: 3.4
• Processor cache: 12
• Processor cache type: Smart Cache
• Number of processors installed: 1
• Maximum turbo power: 115
• Processor base power: 45
• Internal memory: 16
• Maximum internal memory: 32
• Internal memory type: DDR4-SDRAM
• Memory slots: 2x SO-DIMM
• Memory clock speed: 3200
• Memory channels: Dual-channel
• Storage media: SSD
• Total storage capacity: 256
• Number of storage drives installed: 1
• Total SSDs capacity: 256
• Number of SSDs installed: 1
• SSD capacity: 256
• SSD memory type: TLC
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• M.2 SSD size: 2280 (22 x 80 mm)
• On-board graphics card: Yes
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel UHD Graphics
• On-board graphics card model: Intel UHD Graphics
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Cabling technology: 10/100/1000Base-T(X)
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 6 AX201
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.2
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• Ethernet LAN (RJ-45) ports: 1
• Combo headphone/mic port: Yes
• Motherboard chipset: Intel SoC
• Audio chip: Realtek ALC256
• Audio system: High Definition Audio
• Built-in speaker(s): Yes
• Number of speakers: 1
• Password protection: Yes
• Password protection type: BIOS/HDD/Supervisor
• Product type: Mini PC
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Operating system architecture: 64-bit
• Operating system language: English/ROM
• Operating system installed: Windows 11 Pro
• Power supply: 65
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): -40 - 60
• Operating relative humidity (H-H): 20 - 80
• Storage relative humidity (H-H): 10 - 90
• Operating altitude: 0 - 3048
• Non-operating altitude: 0 - 12192
• Certification: ENERGY STAR 8.0 EPEAT Gold ErP Lot 3 and Lot 7 TCO Certified 9.0 RoHS compliant
• Width: 179
• Depth: 182.9
• Height: 36.5
• Weight: 1110
• Package width: 494
• Package depth: 250
• Package height: 130
• Package weight: 3200
• Mouse connectivity: Wired
• Mouse included: Yes
• Keyboard connectivity: Wired
• Keyboard included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01593
• Unit Calculated Weight: 5
