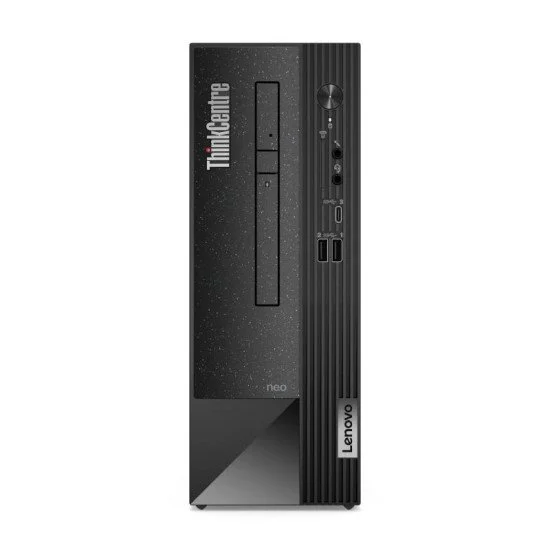

ThinkCentre

Technical Specifications

• Summary: Lenovo ThinkCentre neo 50s. Processor family: Intel Core i7, Processor model: i7-13700. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 3200 MHz. Total storage capacity: 1 TB, Storage media: SSD, Card reader integrated, Optical drive type: DVD±RW. On-board graphics card model: Intel UHD Graphics 770. Power supply: 260 W. Chassis type: SFF. Product type: PC. Weight: 4.5 kg. Product colour: Black
• Vendor Homepage: https://www.lenovo.com/us/en/p/desktops/thinkcentre/thinkcentre-neo-series/thinkcentre-neo-50s-gen-4-(intel)-sff/12jf000pus?orgRef=https%253A%252F%252Fwww.google.com%252F
• Name: PC TC NEO 50S G4 CI7-13700/16GB/1TB 12JF000WRI LENOVO
• Category Code: DT
• Desktop Computer Family name: ThinkCentre
• Chassis type: SFF
• Colour name: Raven black
• Volume: 7.4
• Placement supported: Vertical
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Product colour: Black
• Processor manufacturer: Intel
• Processor family: Intel Core i7
• Processor generation: 13th gen Intel Core i7
• Processor model: i7-13700
• Processor cores: 16
• Processor threads: 24
• Processor boost frequency: 5.2
• Performance cores: 8
• Efficient cores: 8
• Performance-core Max Turbo Frequency: 5.1
• Efficient-core Max Turbo Frequency: 4.1
• Performance-core base frequency: 2.1
• Efficient-core base frequency: 1.5
• Processor cache: 30
• Processor cache type: Smart Cache
• Number of processors installed: 1
• Maximum turbo power: 219
• Processor base power: 65
• Internal memory: 16
• Maximum internal memory: 64
• Internal memory type: DDR4-SDRAM
• Memory layout (slots x size): 1 x 16
• Memory slots: 2x DIMM
• Memory clock speed: 3200
• Memory channels: Dual-channel
• Storage media: SSD
• Total storage capacity: 1000
• Optical drive type: DVD±RW
• Number of storage drives installed: 1
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: Memory Stick (MS)/MMC/MS PRO/SD/SDHC/SDXC/xD
• On-board graphics card: Yes
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel UHD Graphics
• On-board graphics card model: Intel UHD Graphics 770
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Cabling technology: 10/100/1000Base-T(X)
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
• VGA (D-Sub) ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Line-out: Yes
• Combo headphone/mic port: Yes
• Motherboard chipset: Intel B660
• Audio chip: Realtek ALC623-CG
• Audio system: High Definition Audio
• Built-in speaker(s): Yes
• Number of speakers: 1
• Password protection: Yes
• Password protection type: BIOS/HDD/Power on/Supervisor
• Product type: PC
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Power supply: 260
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): -40 - 60
• Operating relative humidity (H-H): 20 - 80
• Storage relative humidity (H-H): 10 - 90
• Operating altitude: 0 - 3048
• Non-operating altitude: 0 - 12192
• Compliance certificates: RoHS
• Certification: ErP Lot 3 TCO Certified RoHS compliant
• Sustainability certificates: ErP/TCO
• Width: 100
• Depth: 308
• Height: 274.8
• Weight: 4500
• Package width: 195
• Package depth: 390
• Package height: 500
• Package weight: 6350
• Mouse connectivity: Wired
• Mouse included: Yes
• Keyboard connectivity: Wired
• Keyboard included: Yes
• KB language: ENG
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.049
• Unit Calculated Weight: 5.4
