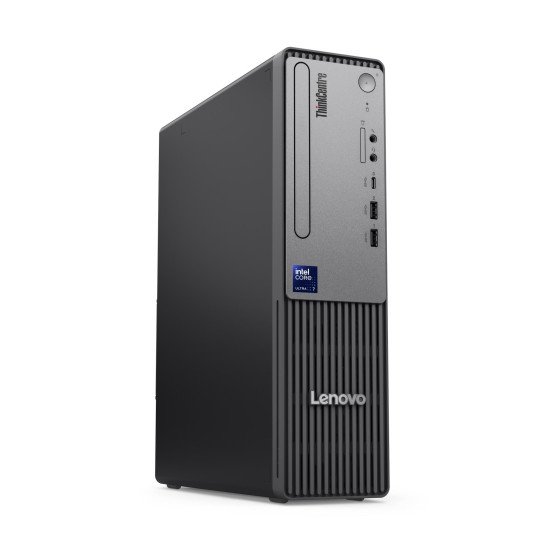

PC TC NEO 50S G6 CU5-225/16GB/1TB 13DM0018RI LENOVO

Technical Specifications

• Summary: Lenovo ThinkCentre neo 50s Gen 6. Processor family: Intel Core Ultra 5, Processor model: 225. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel Graphics. Wi-Fi. Power supply: 200 W. Chassis type: SFF. Product type: PC. Weight: 4.62 kg. Product colour: Black
• Vendor Homepage: https://www.lenovo.com/gb/en/p/desktops/thinkcentre/thinkcentre-neo-series/lenovo-thinkcentre-neo-50s-gen-6-intel-sff/len102c0076
• Name: PC TC NEO 50S G6 CU5-225/16GB/1TB 13DM0018RI LENOVO
• Category Code: DT
• Chassis type: SFF
• Colour name: Raven black
• Volume: 8.2
• Placement supported: Horizontal/Vertical
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Product colour: Black
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 5
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 225
• Processor cores: 10
• Processor threads: 10
• Processor boost frequency: 4.9
• Performance cores: 6
• Efficient cores: 4
• Performance-core Max Turbo Frequency: 4.9
• Efficient-core Max Turbo Frequency: 4.4
• Performance-core base frequency: 3.3
• Efficient-core base frequency: 2.7
• Processor cache: 20
• Processor cache type: Smart Cache
• Maximum turbo power: 121
• Processor base power: 65
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 23
• NPU performance up to: 13
• GPU performance up to: 4
• Internal memory: 16
• Maximum internal memory: 64
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 1 x 16
• Memory slots: 2x DIMM
• Memory clock speed: 5600
• Memory channels: Dual-channel
• Storage media: SSD
• Total storage capacity: 1000
• Number of storage drives installed: 1
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• M.2 SSD size: 2280 (22 x 80 mm)
• Card reader integrated: Yes
• On-board graphics card: Yes
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Cabling technology: 10/100/1000Base-T(X)
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 6E AX211
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.3
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Line-out: Yes
• Combo headphone/mic port: Yes
• Motherboard chipset: Intel B860
• Audio chip: Realtek ALC623-CG
• Built-in speaker(s): Yes
• Number of speakers: 1
• Password protection: Yes
• Password protection type: BIOS/HDD/Power on
• Product type: PC
• Trusted Platform Module (TPM): Yes
• Power supply: 200
• Power supply input voltage: 100 - 240
• Power supply input frequency: 50/60
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): -40 - 60
• Operating relative humidity (H-H): 20 - 80
• Storage relative humidity (H-H): 10 - 90
• Operating altitude: 0 - 3048
• Non-operating altitude: 0 - 12192
• Certification: RoHS / WEEE / REACH
• Width: 92.5
• Depth: 291.7
• Height: 339.5
• Weight: 4620
• Package width: 195
• Package depth: 395
• Package height: 530
• Package weight: 5600
• Mouse connectivity: Wired
• Mouse included: Yes
• Keyboard connectivity: Wired
• Keyboard included: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.04134
• Unit Calculated Weight: 6
