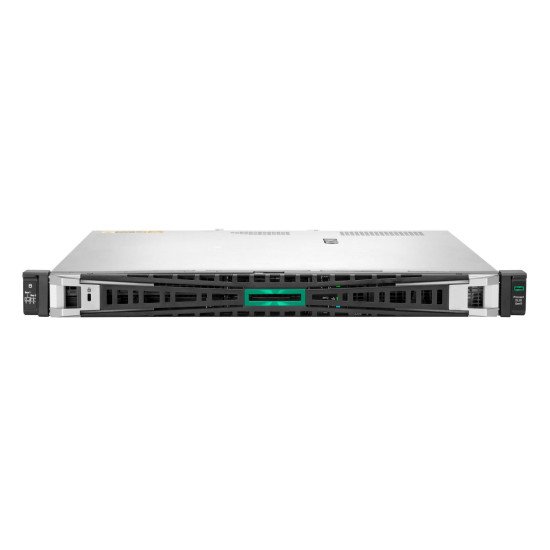

HPE ProLiant DL20 Gen11 Smart Choice

Technical Specifications

• Summary: HPE ProLiant DL20 Gen11 6325P 3.5GHz 4c 1P 1x32GB-U 2LFF 2x2TB HDD 1x290W PS EU Server. Processor family: Intel Xeon, Processor frequency: 3.5 GHz, Processor model: 6325P. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 1 x 32 GB. Total storage capacity: 4 TB, HDD size: 3.5", HDD interface: SATA III. Power supply: 290 W, Redundant power supply (RPS) support. Chassis type: Rack (1U)
• Vendor Homepage: https://www.hpe.com/
• Name: SERVER DL20 GEN11 6325P 2LFF/P87462-425 HPE
• Category Code: SER
• Model: HPE ProLiant DL20 Gen11 Smart Choice
• Model name: ProLiant DL20 Gen11 6325P 3.5GHz 4c 1P 1x32GB-U 2LFF 2x2TB HDD 1x290W PS EU Server
• Processor manufacturer: Intel
• Processor family: Intel Xeon
• Processor model: 6325P
• Processor frequency: 3.5
• Processor boost frequency: 5.2
• Performance cores: 4
• Processor cores: 4
• Processor cache: 12
• Number of processors installed: 1
• Processor cache type: L3
• Internal memory: 32
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 4800
• Memory layout (slots x size): 1 x 32
• Memory slots: 4x DIMM
• Maximum internal memory: 128
• Total storage capacity: 4000
• Number of HDDs installed: 2
• HDD capacity: 2000
• HDD interface: SATA III
• HDD size: 3.5
• Number of HDDs supported: 2
• RAID support: Yes
• Supported RAID controllers: Embedded Intel VROC SATA (formerly known as Intel RSTe)
• LAN controller: Broadcom BCM5719
• Ethernet LAN (RJ-45) ports: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
• DisplayPorts quantity: 1
• Expansion slots: Two maximum, for detailed descriptions refer to the QuickSpecs.
• VGA (D-Sub) ports quantity: 1
• Chassis type: Rack (1U)
• Product colour: Black/Silver
• Cooling type: Active
• Rack mounting: Yes
• Management platform: HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE Compute Ops Management (optional subscription available)
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Power supply type: 1x HPE ProLiant DL20 Gen10 Plus 290W FIO Power Supply Kit
• Redundant power supply (RPS) support: Yes
• Power supply: 290
• Number of main power supplies: 1
• Width: 434.6
• Depth: 382.2
• Height: 43.2
• Number of processors supported: 1
• Security features: Embedded Trusted Platform Module (TPM) 2.0 enabled by default. For servers shipping to China, the TPM is disabled. For full security features refer to the QuickSpecs.
• Standard fans: 3x High Performance Fans
• Storage drive type: 2x HPE 2TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD
• Units per Pallet: 0
• Shipping Box Weight: 17
• Shipping Box Height: 26
• Shipping Box Depth: 68
• Shipping Box Width: 57
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.1008
• Unit Calculated Weight: 17
