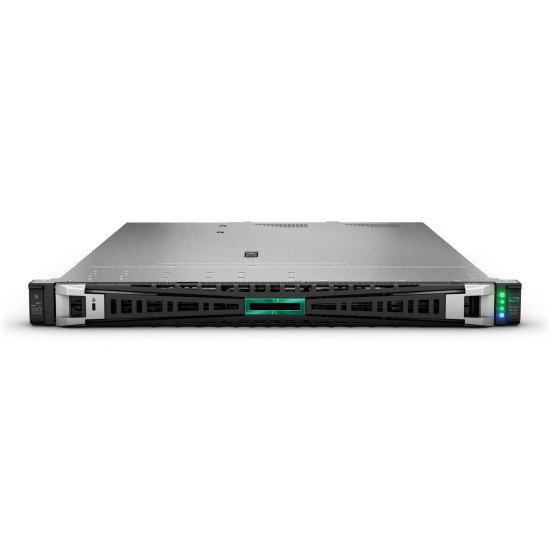

HPE ProLiant DL320 Gen11 Smart Choice

Technical Specifications

• Summary: HPE ProLiant DL320 Gen11 4510 12c 1P 2x32GB-R 8SFF MR408i-o 2x480GB SATA SSD 2x1000W PS EU Server. Processor family: Intel Xeon Silver, Processor frequency: 2.4 GHz, Processor model: 4510. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 2 x 32 GB. Total storage capacity: 960 GB. Ethernet LAN. Power supply: 1000 W, Redundant power supply (RPS) support. Chassis type: Rack (1U)
• Vendor Homepage: https://www.hpe.com/
• Name: SERVER DL320 GEN11 4510/P80510-425 HPE
• Category Code: SER
• Model: HPE ProLiant DL320 Gen11 Smart Choice
• Model name: ProLiant DL320 Gen11 4510 12c 1P 2x32GB-R 8SFF MR408i-o 2x480GB SATA SSD 2x1000W PS EU Server
• Processor manufacturer: Intel
• Processor family: Intel Xeon Silver
• Processor model: 4510
• Processor frequency: 2.4
• Processor boost frequency: 4.1
• Processor cores: 12
• Processor cache: 30
• Motherboard chipset: Intel C741
• Number of processors installed: 1
• Processor cache type: L3
• Internal memory: 64
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory layout (slots x size): 2 x 32
• Memory slots: 16x DIMM
• Maximum internal memory: 2048
• Maximum storage capacity: 1536
• Total storage capacity: 960
• Number of HDDs installed: 2
• Number of SSDs installed: 2
• SSD capacity: 480
• SSD interface: SATA III
• SSD size: 2.5"
• Number of SSDs supported: 8
• RAID support: Yes
• RAID levels: 0/1/10/5
• Supported RAID controllers: HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller
• Ethernet interface type: Gigabit Ethernet
• Ethernet LAN: Yes
• LAN controller: Broadcom BCM5720
• Ethernet LAN (RJ-45) ports: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• Expansion slots: Maximum, 2 PCIe Gen5 & 1 OCP 3.0 PCIe Gen5, for detail descriptions please refer to the QuickSpecs.
• VGA (D-Sub) ports quantity: 1
• Chassis type: Rack (1U)
• Management platform: Included - HPE Compute Ops Management, HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional - HPE iLO Advanced, and HPE OneView Advanced.
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Export Control Classification Number (ECCN): 5A992
• Power supply type: 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
• Redundant power supply (RPS) support: Yes
• Power supply: 1000
• Number of redundant power supplies installed: 1
• Number of main power supplies: 2
• Number of processors supported: 1
• Security features: UEFI Secure Boot and Secure Start support. Intel Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits.
• Standard fans: 7x Standard Fans
• Storage drive type: 2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD
• Shipping Box Weight: 27
• Shipping Box Height: 23
• Shipping Box Depth: 91
• Shipping Box Width: 60
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.1256
• Unit Calculated Weight: 27
