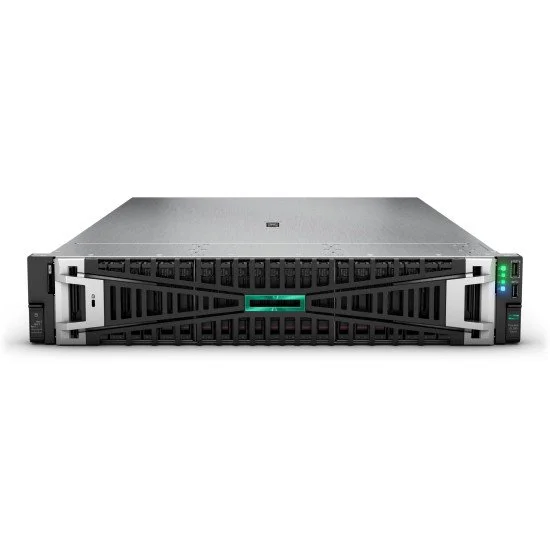

HPE ProLiant DL380 Gen11 Smart Choice

Technical Specifications

• Summary: HPE ProLiant DL380 Gen11 4514Y 2.0GHz 16c 1P 2x32GB-R 8SFF MR416i-o 2x2.4TB HDD 2x1000W PS EU Server. Processor family: Intel Xeon Silver, Processor frequency: 2 GHz, Processor model: 4514Y. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 2 x 32 GB. Total storage capacity: 4.8 TB, HDD interface: Serial Attached SCSI (SAS). Ethernet LAN. Power supply: 1000 W, Redundant power supply (RPS) support. Chassis type: Rack (2U)
• Vendor Homepage: https://www.hpe.com/
• Name: SERVER DL380 GEN11 4514Y/P77235-425 HPE
• Category Code: SER
• Model: HPE ProLiant DL380 Gen11 Smart Choice
• Model name: ProLiant DL380 Gen11 4514Y 2.0GHz 16c 1P 2x32GB-R 8SFF MR416i-o 2x2.4TB HDD 2x1000W PS EU Server
• Processor manufacturer: Intel
• Processor family: Intel Xeon Silver
• Processor model: 4514Y
• Processor frequency: 2
• Processor boost frequency: 3.4
• Processor cores: 16
• Processor cache: 30
• Number of processors installed: 1
• Processor cache type: L3
• Internal memory: 64
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory layout (slots x size): 2 x 32
• Memory slots: 32x DIMM
• Maximum internal memory: 8000
• Maximum storage capacity: 583.3
• Total storage capacity: 4800
• Number of HDDs installed: 2
• HDD capacity: 2400
• HDD interface: Serial Attached SCSI (SAS)
• SSD interface: PCI Express 4.0
• RAID support: Yes
• Supported RAID controllers: HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller
• Ethernet interface type: 10 Gigabit Ethernet
• Ethernet LAN: Yes
• LAN controller: Broadcom BCM57416
• Ethernet LAN (RJ-45) ports: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• Expansion slots: Up to 8 PCIe Gen5, and 2 OCP 3.0, for detailed descriptions reference the QuickSpecs
• VGA (D-Sub) ports quantity: 1
• Chassis type: Rack (2U)
• Management platform: HPE iLO Standard with intelligent provisioning (embedded), and HPE Compute Ops Management (optional subscription available)
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Power supply type: 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
• Redundant power supply (RPS) support: Yes
• Power supply: 1000
• Number of redundant power supplies installed: 1
• Number of main power supplies: 2
• Width: 732.5
• Depth: 448
• Height: 87.5
• Number of processors supported: 1
• Security features: HPE TPM 2.0 standard on motherboard. Optional locking Bezel Kit, Intrusion Detection Kit. For full security features refer to the QuickSpecs.
• Standard fans: 4x Standard Fans
• Storage drive type: 2x HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD
• Shipping Box Weight: 28
• Shipping Box Height: 65
• Shipping Box Depth: 100
• Shipping Box Width: 26
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.169
• Unit Calculated Weight: 28
