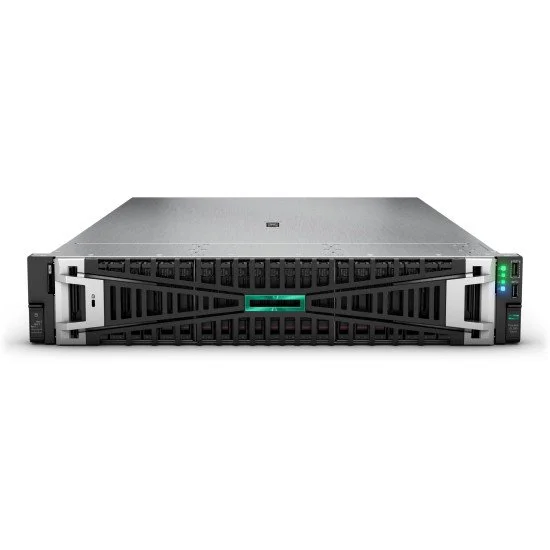

HPE ProLiant DL380 Gen11 Smart Choice

Technical Specifications

• Summary: HPE ProLiant DL380 Gen11 6526Y 2.8GHz 16c 1P 128GB-R 8SFF NS204i-u NC BCM57416 2x1000W PS EU Server. Processor family: Intel Xeon Gold, Processor frequency: 2.8 GHz, Processor model: 6526Y. Internal memory: 128 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 4 x 32 GB. Ethernet LAN. Power supply: 1000 W, Redundant power supply (RPS) support. Chassis type: Rack (2U)
• Vendor Homepage: https://www.hpe.com/
• Name: SERVER DL380 GEN11 6526Y/P77241-425 HPE
• Category Code: SER
• Model: HPE ProLiant DL380 Gen11 Smart Choice
• Model name: ProLiant DL380 Gen11 6526Y 2.8GHz 16c 1P 128GB-R 8SFF NS204i-u NC BCM57416 2x1000W PS EU Server
• Processor manufacturer: Intel
• Processor family: Intel Xeon Gold
• Processor model: 6526Y
• Processor frequency: 2.8
• Processor boost frequency: 3.9
• Processor cores: 16
• Processor cache: 37.5
• Number of processors installed: 1
• Processor cache type: L3
• Internal memory: 128
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory layout (slots x size): 4 x 32
• Memory slots: 32x DIMM
• Maximum internal memory: 8000
• Maximum storage capacity: 583.3
• SSD interface: PCI Express 4.0
• RAID support: Yes
• Supported RAID controllers: HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device
• Ethernet interface type: 10 Gigabit Ethernet
• Ethernet LAN: Yes
• LAN controller: Broadcom BCM57416
• Ethernet LAN (RJ-45) ports: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• Expansion slots: Up to 8 PCIe Gen5, and 2 OCP 3.0, for detailed descriptions reference the QuickSpecs
• VGA (D-Sub) ports quantity: 1
• Chassis type: Rack (2U)
• Management platform: HPE iLO Standard with intelligent provisioning (embedded), and HPE Compute Ops Management (optional subscription available)
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Power supply type: 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
• Redundant power supply (RPS) support: Yes
• Power supply: 1000
• Number of redundant power supplies installed: 1
• Number of main power supplies: 2
• Width: 732.5
• Depth: 448
• Height: 87.5
• Number of processors supported: 1
• Security features: HPE TPM 2.0 standard on motherboard. Optional locking Bezel Kit, Intrusion Detection Kit. For full security features refer to the QuickSpecs.
• Standard fans: 6x High Performance Fan
• Storage drive type: None ship standard, 8 SFF supported
• Shipping Box Weight: 25
• Shipping Box Height: 59
• Shipping Box Depth: 99
• Shipping Box Width: 26
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.1519
• Unit Calculated Weight: 25
