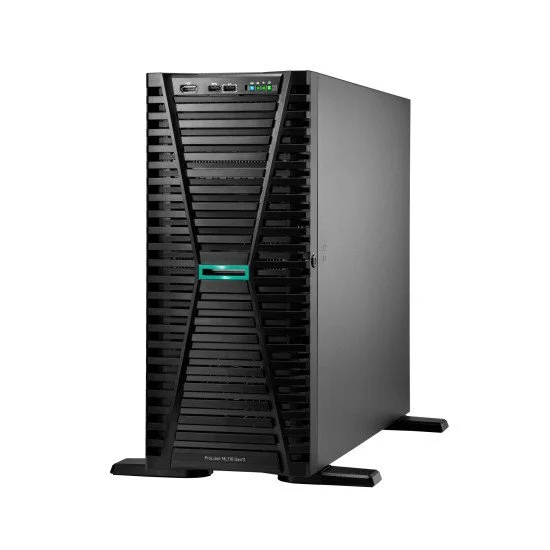

HPE ProLiant ML110 Gen1

Technical Specifications

• Summary: HPE ProLiant ML110 Gen11 3508U 2.1GHz 8-core 1P 32GB-R VROC 4LFF 2x2TB HDD 2x1000W RPS EU Server. Processor family: Intel Xeon Bronze, Processor frequency: 2.1 GHz, Processor model: 3508U. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 1 x 32 GB. Total storage capacity: 4 TB, HDD size: 3.5", HDD interface: SATA III. Ethernet LAN. Power supply: 1000 W, Redundant power supply (RPS) support. Chassis type: Tower (4.5U)
• Vendor Homepage: https://www.hpe.com/
• Name: SERVER ML110 GEN11 3508U/P71647-425 HPE
• Category Code: SER
• Model: HPE ProLiant ML110 Gen1
• Model name: ProLiant ML110 Gen11 3508U 2.1GHz 8-core 1P 32GB-R VROC 4LFF 2x2TB HDD 2x1000W RPS EU Server
• Processor manufacturer: Intel
• Processor family: Intel Xeon Bronze
• Processor model: 3508U
• Processor frequency: 2.1
• Processor boost frequency: 2.2
• Processor cores: 8
• Processor cache: 22.5
• Motherboard chipset: Intel C741
• Number of processors installed: 1
• Processor cache type: L3
• Internal memory: 32
• Internal memory type: DDR5-SDRAM
• ECC: Yes
• Memory clock speed: 5600
• Memory layout (slots x size): 1 x 32
• Memory slots: 16x DIMM
• Maximum internal memory: 1500
• Maximum storage capacity: 192
• Total storage capacity: 4000
• Number of HDDs installed: 2
• HDD capacity: 2000
• HDD interface: SATA III
• HDD size: 3.5
• Number of HDDs supported: 4
• Supported HDD sizes: 3.5
• SSD interface: SATA III
• RAID support: Yes
• RAID levels: 0/1/10/5
• Supported RAID controllers: Embedded Intel VROC SATA/NVMe
• Ethernet interface type: Gigabit Ethernet
• Ethernet LAN: Yes
• LAN controller: Broadcom BCM5720
• Ethernet LAN (RJ-45) ports: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• DisplayPorts quantity: 1
• Expansion slots: Default with 2 x16 PCIe 5.0 Slots and 1 x16 OCP3 slot.
• VGA (D-Sub) ports quantity: 1
• PCI Express x16 slots: 2
• Chassis type: Tower (4.5U)
• Product colour: Black
• BIOS type: UEFI
• Management platform: Included: HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) Optional: HPE iLO Advanced, HPE OneView Advanced (require licenses) and HPE Compute Ops Management. Refer to the iLO 6 User Guide
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Power supply type: 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
• Redundant power supply (RPS) support: Yes
• Power supply: 1000
• Number of redundant power supplies installed: 1
• Number of main power supplies: 2
• Operating temperature (T-T): 10 - 35
• Storage temperature (T-T): -30 - 60
• Operating relative humidity (H-H): 8 - 90
• Storage relative humidity (H-H): 5 - 95
• Operating altitude: 0 - 3050
• Non-operating altitude: 0 - 9144
• Width: 195
• Depth: 587
• Height: 462
• Weight: 20400
• Number of processors supported: 1
• Security features: UEFI Secure Boot and Secure Start support. Intel Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. TPM (Trusted Platform Module) 2.0 support. Front bezel key-lock feature, Intrusion cable (Included), Padlock slot and Kensington Loc
• Standard fans: 2x Standard Fans
• Storage drive type: 2x HPE 2TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD
• Shipping Box Weight: 25
• Shipping Box Height: 33
• Shipping Box Depth: 89
• Shipping Box Width: 57
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.1674
• Unit Calculated Weight: 25
