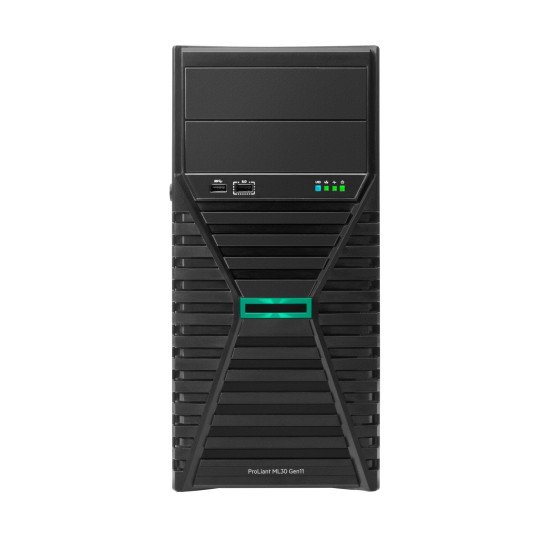

HPE ProLiant ML30 Gen11

Technical Specifications

• Summary: HPE ProLiant ML30 Gen11 E-2414 2.6GHz 4c 1P 32GB-DR 4LFF-NHP VROC 2x1TB SATA HDD 350W PS EU Server. Processor family: Intel Xeon, Processor frequency: 2.6 GHz, Processor model: E-2414. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 1 x 32 GB. Total storage capacity: 2 TB, HDD interface: SATA III. Ethernet LAN. Power supply: 350 W. Chassis type: Tower (4U)
• Vendor Homepage: https://www.hpe.com/
• Name: SERVER ML30 GEN11 E-2414/P71385-425 HPE
• Category Code: SER
• Model: HPE ProLiant ML30 Gen11
• Model name: ProLiant ML30 Gen11 E-2414 2.6GHz 4c 1P 32GB-DR 4LFF-NHP VROC 2x1TB SATA HDD 350W PS EU Server
• Processor manufacturer: Intel
• Processor family: Intel Xeon
• Processor model: E-2414
• Processor frequency: 2.6
• Processor boost frequency: 4.5
• Processor cores: 4
• Processor cache: 12
• Motherboard chipset: Intel C262
• Number of processors installed: 1
• Processor cache type: Smart Cache
• Internal memory: 32
• Internal memory type: DDR5-SDRAM
• ECC: Yes
• Memory clock speed: 4800
• Memory layout (slots x size): 1 x 32
• Memory slots: 4x DIMM
• Maximum internal memory: 128
• Maximum storage capacity: 16
• Total storage capacity: 2000
• Number of HDDs installed: 2
• HDD capacity: 1000
• HDD interface: SATA III
• Number of HDDs supported: 4
• Supported HDD sizes: 3.5
• SSD interface: PCI Express 4.0
• RAID support: Yes
• RAID levels: 0/1/10/5
• Supported RAID controllers: Embedded Intel VROC SATA (formerly known as Intel RSTe)
• On-board graphics card: Yes
• Maximum graphics card memory: 16
• Ethernet interface type: Gigabit Ethernet
• Ethernet LAN: Yes
• LAN controller: Broadcom BCM5719
• Ethernet LAN (RJ-45) ports: 4
• USB 2.0 ports quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
• DisplayPorts quantity: 1
• Expansion slots: 4, for detailed descriptions refer to the QuickSpecs
• VGA (D-Sub) ports quantity: 1
• Chassis type: Tower (4U)
• Remote administration: iLO 6 ASIC
• Management platform: HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE Compute Ops Management (optional subscription available).
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Compatible operating systems: Microsoft Windows Server VMware ESXi Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Canonical Ubuntu
• Power supply type: 1x HPE ProLiant ML30 Gen10 Plus 350W Platinum ATX FIO Power Supply
• Power supply: 350
• Number of main power supplies: 1
• Width: 175.3
• Depth: 475
• Height: 368.3
• Number of processors supported: 1
• Security features: Embedded Trusted Platform Module (TPM) 2.0 enabled by default. For servers shipping to China, the TPM is disabled. For full security features refer to the QuickSpecs.
• Standard fans: 1x Standard Fan
• Storage drive type: 2x HPE 1TB SATA 6G Business Critical 7.2K LFF RW 1-year Warranty Multi Vendor HDD
• Shipping Box Weight: 14
• Shipping Box Height: 50
• Shipping Box Depth: 59
• Shipping Box Width: 32
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0944
• Unit Calculated Weight: 14
