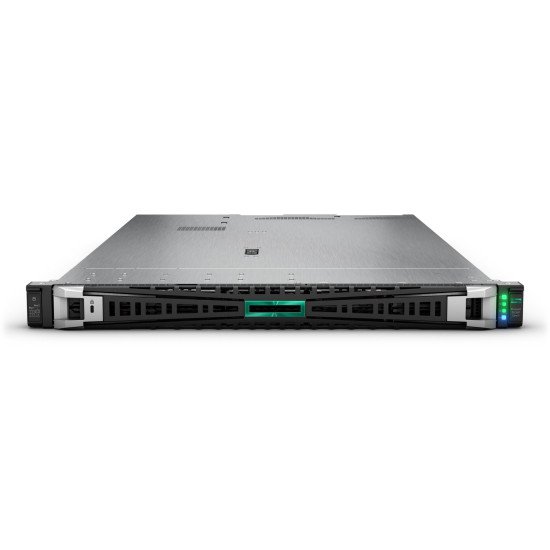

ProLiant DL360 Gen11

Technical Specifications

• Summary: HPE ProLiant DL360 Gen11 4510 2.4GHz 12c 1P 2x32GB-R 8SFF MR408i-o 2x2.4TB HDD 2x1000W PS EU Server. Processor family: Intel Xeon Silver, Processor frequency: 2.4 GHz, Processor model: 4510. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 2 x 32 GB. Total storage capacity: 4.8 TB, HDD interface: Serial Attached SCSI (SAS). Ethernet LAN. Power supply: 1000 W, Redundant power supply (RPS) support. Chassis type: Rack (1U)
• Vendor Homepage: https://www.hpe.com/
• Name: SERVER DL360 GEN11 4510/P77247-425 HPE
• Category Code: SER
• Model: ProLiant DL360 Gen11
• Model name: ProLiant DL360 Gen11 4510 2.4GHz 12c 1P 2x32GB-R 8SFF MR408i-o 2x2.4TB HDD 2x1000W PS EU Server
• Processor manufacturer: Intel
• Processor family: Intel Xeon Silver
• Processor model: 4510
• Processor frequency: 2.4
• Processor boost frequency: 4.1
• Processor cores: 12
• Processor cache: 30
• Number of processors installed: 1
• Processor cache type: L3
• Internal memory: 64
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory layout (slots x size): 2 x 32
• Memory slots: 16x DIMM
• Maximum internal memory: 4000
• Maximum storage capacity: 153.6
• Total storage capacity: 4800
• Number of HDDs installed: 2
• HDD capacity: 2400
• HDD interface: Serial Attached SCSI (SAS)
• SSD interface: PCI Express 4.0
• RAID support: Yes
• Supported RAID controllers: HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller
• Ethernet interface type: Gigabit Ethernet
• Ethernet LAN: Yes
• LAN controller: Broadcom BCM5719
• Ethernet LAN (RJ-45) ports: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• Expansion slots: 2-slots (x16 FH, x16 HH) as standard. Upgradeable to 3rd slot in HH (or remove Slot 2 bracket to be FH at Slot 3) in a 2nd processor configuration. And maximum 2 OCP 3.0 PCIe5 slots.
• VGA (D-Sub) ports quantity: 1
• Chassis type: Rack (1U)
• Management platform: Included - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional - HPE iLO Advanced, HPE OneView Advanced and HPE Compute Ops Management Refer to the iLO 6 User Guide
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Power supply type: 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
• Redundant power supply (RPS) support: Yes
• Power supply: 1000
• Number of redundant power supplies installed: 1
• Number of main power supplies: 2
• Width: 753.1
• Depth: 434.6
• Height: 42.9
• Number of processors supported: 1
• Security features: UEFI Secure Boot and Secure Start support. Intel Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits. For full security featur
• Standard fans: 5x Standard Fans
• Storage drive type: 2x HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD
• Shipping Box Weight: 25
• Shipping Box Height: 60
• Shipping Box Depth: 99
• Shipping Box Width: 24
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.1426
• Unit Calculated Weight: 25
