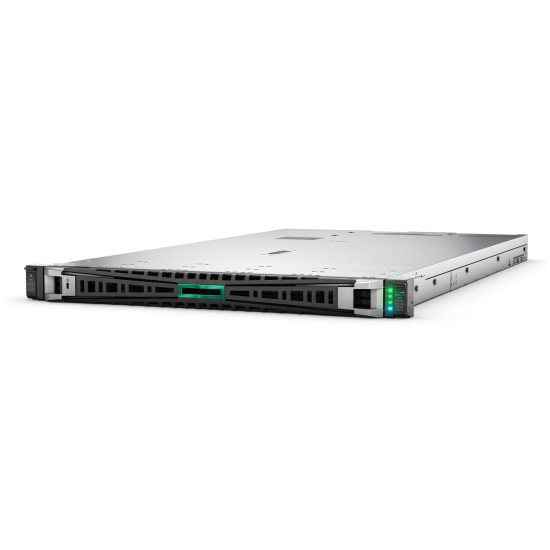

ProLiant DL360 Gen12

Technical Specifications

• Summary: HPE ProLiant Compute DL360 Gen12 6515P 16c 2x32GB-R 8SFF MR408i-o 2x480GB SSD 2x1000W PS EU Server. Processor family: Intel Xeon, Processor frequency: 2.4 GHz, Processor model: 6515P. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 2 x 32 GB. Total storage capacity: 960 GB. Ethernet LAN. Power supply: 1000 W, Redundant power supply (RPS) support. Chassis type: Rack (1U)
• Vendor Homepage: https://www.hpe.com/
• Name: SERVER DL360 GEN12 6515P 8SFF/P89226-425 HPE
• Category Code: SER
• Model: P89226-425
• Model name: ProLiant Compute DL360 Gen12 6515P 16c 2x32GB-R 8SFF MR408i-o 2x480GB SSD 2x1000W PS EU Server
• Processor manufacturer: Intel
• Processor family: Intel Xeon
• Processor model: 6515P
• Processor frequency: 2.4
• Processor boost frequency: 3.8
• Processor cores: 16
• Processor cache: 72
• Number of processors installed: 1
• Processor cache type: L3
• Internal memory: 64
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 6400
• Memory layout (slots x size): 2 x 32
• Memory slots: 32x DIMM
• Maximum internal memory: 8000
• Total storage capacity: 960
• Number of SSDs installed: 2
• SSD capacity: 480
• SSD interface: SATA III
• Supported SSD sizes: 2.5"
• Number of SSDs supported: 8
• RAID support: Yes
• Supported RAID controllers: HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller
• Ethernet interface type: 10 Gigabit Ethernet
• Ethernet LAN: Yes
• LAN controller: Broadcom BCM57416
• Ethernet LAN (RJ-45) ports: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• Expansion slots: Maximum 3 PCIe Gen5 slots (x16 lanes/each) & Maximum 2 OCP3.0 slots (x16 lanes/each)
• Number of management ports: 1
• VGA (D-Sub) ports quantity: 1
• Chassis type: Rack (1U)
• Cooling type: Active
• Rack mounting: Yes
• Management platform: Included - HPE iLO7 Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional - HPE iLO7 Advanced, and HPE OneView Advanced. Refer to the iLO 7 User Guide
• Power supply type: 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
• Redundant power supply (RPS) support: Yes
• Power supply: 1000
• Number of main power supplies: 2
• Width: 753.1
• Depth: 434.6
• Height: 42.9
• Number of processors supported: 1
• Security features: UEFI Secure Boot and Secure Start support. Intel Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, Chassis Intrusion detection and Bezel Locking kits. For full security features re
• Standard fans: 5x Standard Fans
• Storage drive type: 2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD
• Units per Pallet: 0
• Shipping Box Weight: 25
• Shipping Box Height: 24
• Shipping Box Depth: 100
• Shipping Box Width: 60
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.144
• Unit Calculated Weight: 25
