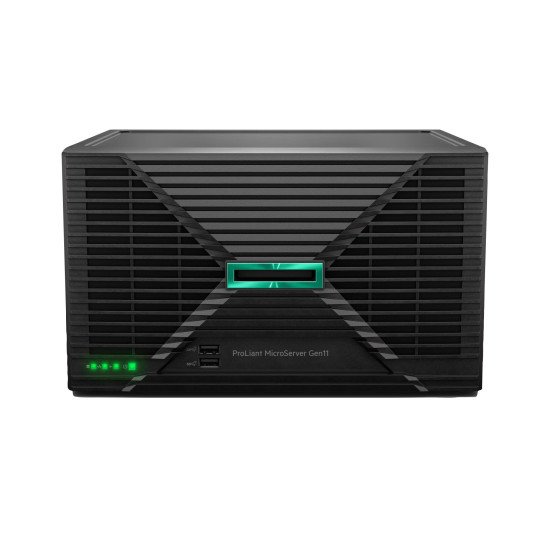

ProLiant MicroServer Gen11

Technical Specifications

• Summary: HPE ProLiant MicroServer Gen11 G7400 2c 16GB-U 4LFF-NHP 1TB HDD 180W Ext PS EMEA Cmp Module Server. Processor family: Intel Pentium Gold, Processor frequency: 3.7 GHz, Processor model: G7400. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 1 x 16 GB. Total storage capacity: 1 TB, HDD size: 3.5", HDD interface: SATA III. Ethernet LAN. Power supply: 180 W. Chassis type: Ultra Micro Tower
• Vendor Homepage: https://www.hpe.com/
• Name: SERVER MICRO PROLIANT G7400/GEN11 16GB-U P74439-425 HPE
• Category Code: SER
• Model: ProLiant MicroServer Gen11
• Model name: ProLiant MicroServer Gen11 G7400 2c 16GB-U 4LFF-NHP 1TB HDD 180W Ext PS EMEA Cmp Module Server
• Processor manufacturer: Intel
• Processor family: Intel Pentium Gold
• Processor model: G7400
• Processor frequency: 3.7
• Performance-core base frequency: 3.7
• Performance cores: 2
• Processor cores: 2
• Processor cache: 6
• Motherboard chipset: Intel C262
• Number of processors installed: 1
• Processor cache type: Smart Cache
• Intel Optane Memory Ready: Yes
• Internal memory: 16
• Internal memory type: DDR5-SDRAM
• ECC: Yes
• Memory clock speed: 4800
• Memory layout (slots x size): 1 x 16
• Memory slots: 4x DIMM
• Maximum internal memory: 128
• Maximum storage capacity: 16
• Total storage capacity: 1000
• Number of HDDs installed: 1
• HDD capacity: 1000
• HDD interface: SATA III
• HDD size: 3.5
• Number of HDDs supported: 4
• Supported HDD sizes: 3.5
• SSD interface: SATA III
• RAID support: Yes
• RAID levels: 0/1/10/5
• Supported RAID controllers: Embedded Intel VROC SATA for HPE ProLiant Gen11
• On-board graphics card: Yes
• On-board graphics card family: Intel UHD Graphics
• On-board graphics card model: Intel UHD Graphics 710
• Ethernet interface type: Gigabit Ethernet
• Ethernet LAN: Yes
• LAN controller: Broadcom BCM5719
• Ethernet LAN (RJ-45) ports: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• DisplayPorts quantity: 1
• Expansion slots: 2 PCIe, for detailed descriptions reference the QuickSpecs
• VGA (D-Sub) ports quantity: 1
• PCI Express x8 (Gen 4.x) slots: 1
• PCI Express x16 slots: 1
• Chassis type: Ultra Micro Tower
• Product colour: Black
• Management platform: HPE iLO6, dedicated iLO port included
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Power supply type: 1x 180W External Power Adapter, Non-Redundant Power Supply
• Power supply: 180
• Number of main power supplies: 1
• Power supply input voltage: 100 - 240
• Power supply input frequency: 50/60
• Operating temperature (T-T): 10 - 35
• Storage temperature (T-T): -30 - 60
• Operating relative humidity (H-H): 8 - 90
• Storage relative humidity (H-H): 5 - 95
• Operating altitude: 0 - 3050
• Non-operating altitude: 0 - 9144
• Width: 377
• Depth: 467
• Height: 255.4
• Weight: 7970
• Dimensions (W x D x H) (imperial): 14.84 x 18.39 x 10.05
• Number of processors supported: 1
• Security features: Trusted Platform Module (TPM) 2.0
• Standard fans: 1x Standard Fan
• Storage drive type: HPE 1TB SATA 6G Business Critical 7.2K LFF RW 1-year Warranty Multi Vendor HDD
• Weight (imperial): 17.571
• Shipping Box Weight: 10
• Shipping Box Height: 37
• Shipping Box Depth: 46
• Shipping Box Width: 25
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.04255
• Unit Calculated Weight: 10
