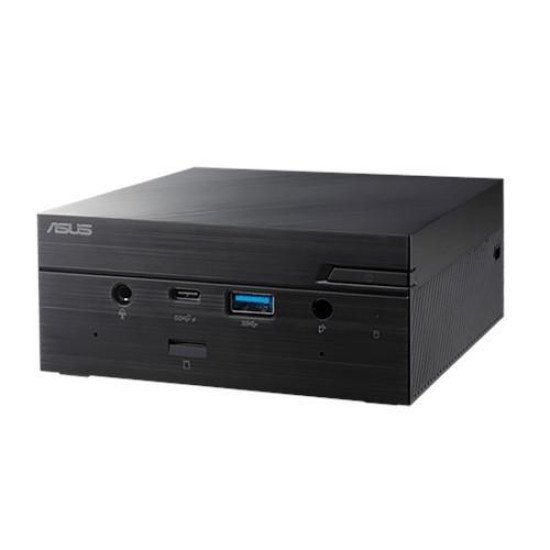

PC PN62 CI5-10210U 8/256GB/PN62-B5083ZD ASUS

Technical Specifications

• Summary: ASUS PN62-B5083ZD. Processor frequency: 1.6 GHz, Processor family: Intel Core i5, Processor model: i5-10210U. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 2666 MHz. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics. Operating system installed: Windows 10 Home, Operating system architecture: 64-bit. Power supply: 65 W. Chassis type: Mini PC. Product type: Mini PC. Product colour: Black
• Vendor Homepage: https://www.asus.com/Commercial-Mini-PCs/Mini-PC-PN62S/overview/
• Name: PC PN62 CI5-10210U 8/256GB/PN62-B5083ZD ASUS
• Category Code: DTM
• Processor manufacturer: Intel
• Processor family: Intel Core i5
• Processor generation: 10th gen Intel Core i5
• Processor model: i5-10210U
• Processor cores: 4
• Processor threads: 8
• Processor boost frequency: 4.2
• Processor frequency: 1.6
• Processor socket: BGA 1528
• Processor cache: 6
• Processor cache type: Smart Cache
• System bus rate: 4
• Processor lithography: 14
• Processor operating modes: 64-bit
• Processor codename: Comet Lake
• Thermal Design Power (TDP): 15
• Configurable TDP-up: 25
• Configurable TDP-up frequency: 2.1
• Configurable TDP-down: 10
• Configurable TDP-down frequency: 0.8
• Tjunction: 100
• Maximum number of PCI Express lanes: 16
• PCI Express configurations: 1x2+2x1/1x4/2x2/4x1
• PCI Express slots version: 3.0
• Number of processors installed: 1
• Maximum internal memory supported by processor: 64
• Memory types supported by processor: DDR4-SDRAM/LPDDR3-SDRAM
• Memory clock speeds supported by processor: 2133/2666
• Memory bandwidth supported by processor (max): 41.66
• Internal memory: 8
• Maximum internal memory: 64
• Internal memory type: DDR4-SDRAM
• Memory slots: 2x SO-DIMM
• Memory clock speed: 2666
• Storage media: SSD
• Total storage capacity: 256
• Total SSDs capacity: 256
• Number of SSDs installed: 1
• SSD capacity: 256
• SSD interface: PCI Express 3.0
• SSD form factor: M.2
• Card reader integrated: Yes
• On-board graphics card: Yes
• On-board GPU manufacturer: Intel
• On-board graphics card model: Intel UHD Graphics
• Maximum on-board graphics card memory: 32
• Number of displays supported (on-board graphics): 3
• On-board graphics card base frequency: 300
• On-board graphics card dynamic frequency (max): 1100
• On-board graphics card DirectX version: 12.0
• On-board graphics card ID: 0x9B41
• On-board graphics card OpenGL version: 4.5
• Number of execution units: 24
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000
• Cabling technology: 10/100/1000Base-T(X)
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
• Bluetooth: Yes
• Bluetooth version: 5.0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• HDMI ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Headphone outputs: 1
• DC-in jack: Yes
• Chassis type: Mini PC
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Product colour: Black
• Product type: Mini PC
• Operating system architecture: 64-bit
• Operating system installed: Windows 10 Home
• CPU configuration (max): 1
• Enhanced Intel SpeedStep Technology: Yes
• Execute Disable Bit: Yes
• Idle States: Yes
• Intel 64: Yes
• Intel Clear Video Technology: Yes
• Intel Flex Memory Access: Yes
• Intel Software Guard Extensions (Intel SGX): Yes
• Intel Virtualization Technology (VT-x): Yes
• Intel Virtualization Technology for Directed I/O (VT-d): Yes
• Intel VT-x with Extended Page Tables (EPT): Yes
• Intel AES New Instructions (Intel AES-NI): Yes
• Intel Clear Video HD Technology (Intel CVT HD): Yes
• Intel OS Guard: Yes
• Intel Secure Key: Yes
• Processor ARK ID: 195436
• Processor package size: 46 x 24
• Supported instruction sets: AVX 2.0/SSE4.1/SSE4.2
• Thermal Monitoring Technologies: Yes
• Intel Turbo Boost Technology: 2.0
• Intel Hyper Threading Technology (Intel HT Technology): Yes
• Intel Quick Sync Video Technology: Yes
• Intel My WiFi Technology (Intel MWT): Yes
• Intel Identity Protection Technology (Intel IPT): Yes
• Power supply: 65
• Width: 115
• Depth: 115
• Height: 49
• Weight: 700
• Unit Calculated Volume: 0.0045
• Unit Calculated Weight: 1.1
